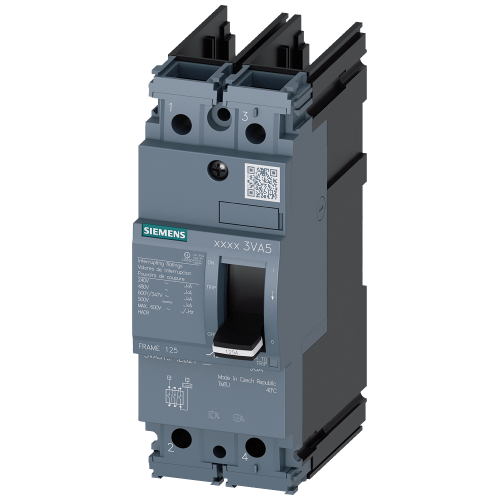

3VA51115ED210AA0

Circuit breaker 3VA5 UL frame 125 breaking capacity class M 35 kA @ 480 V 2-pole

Manufacturer's No: 3VA5111-5ED21-0AA0     Manufacturer: Siemens
Circuit breaker 3VA5 UL frame 125 breaking capacity class M 35 kA @ 480 V 2-pole

Availability On Request

£344.51
  • Circuit Breaker: 3VA5 UL Frame 125
  • Breaking Capacity: 35 kA @ 480 V
  • Configuration: 2-pole
  • Line Protection: TM210, FTFM
  • Overload Protection: In=110 A
  • Short-Circuit Protection: Ir=110 A
  • Short-Circuit Protection Setting: Ii=10 x In

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA5111-5ED21-0AA0
Net Weight -
0.62kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121601

Technical Specification

Adjustment range undelayed short-circuit release -
1100 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
2
Overload release current setting -
110 Ampere
Power loss -
17.2 Watt
Rated permanent current Iu -
110 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Rated voltage -
415 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever

Availability On Request

£344.51
