3VA51605ED300DD0

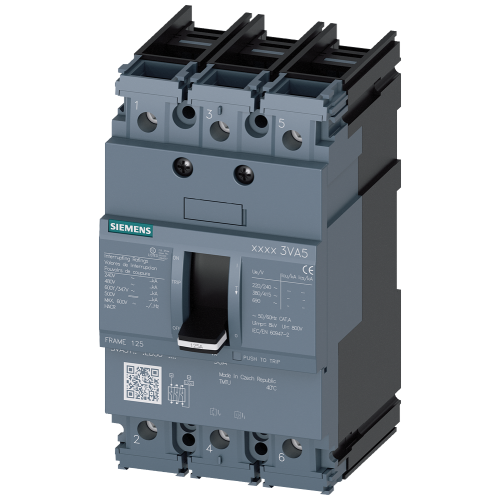

Circuit breaker 3VA5 UL frame 125 breaking capacity class M 35 kA @ 480 V 3-pole

Manufacturer's No: 3VA5160-5ED30-0DD0     Manufacturer: Siemens
Circuit breaker 3VA5 UL frame 125 breaking capacity class M 35 kA @ 480 V 3-pole

Availability On Request

£272.02
  • Circuit Breaker: 3VA5 UL Frame 125
  • Breaking Capacity: 35 kA @ 480 V
  • Configuration: 3-Pole
  • Line Protection: TM210, FTFM
  • Overload Protection: In=60 A
  • Short-Circuit Protection: Ir=60 A
  • Short-Circuit Protection Setting: Ii=10 x In
  • Terminal Type: Box
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA5160-5ED30-0DD0
Net Weight -
1.10kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
CZ
UNSPSC -
26101109

Technical Specification

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
55 kiloampere
Adjustment range undelayed short-circuit release -
600 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
60 Ampere
Position of connection for main current circuit -
Front
Power loss -
13.6 Watt
Rated permanent current Iu -
60 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Frame clamp
