3VA51705EF310AA0

MCCB_UL_FS125_70A_3P_35KA_TM_ ATAM

Manufacturer's No: 3VA5170-5EF31-0AA0     Manufacturer: Siemens
MCCB_UL_FS125_70A_3P_35KA_TM_ ATAM

Availability On Request

£276.83

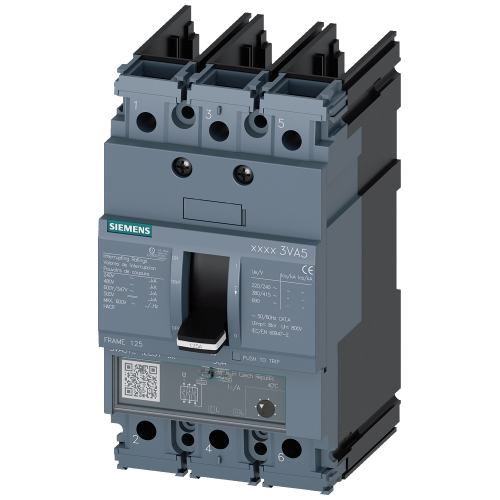

  • Circuit breaker 3VA5 UL Frame 125
  • Breaking capacity: 35 kA @ 480 V
  • 3-pole, line protection TM240
  • Overload protection: In=70 A, Ir=56 A...70 A
  • Short-circuit protection: Ii=5...10 x In without connection

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA5170-5EF31-0AA0
Net Weight -
0.96kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121601

Technical Specification

Adjustment range undelayed short-circuit release -
350 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
56 Ampere
Power loss -
18.3 Watt
Rated permanent current Iu -
70 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever

Availability On Request

£276.83
