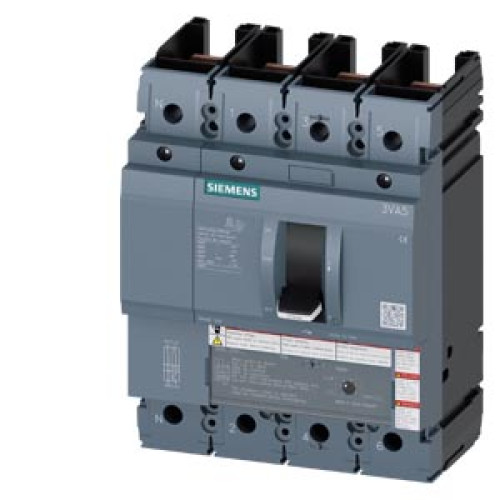

3VA52177EC412AA0

circuit breaker 3VA5 UL Frame 250 breaking capacity class C 100 kA @ 480 V 4-pole, line protection TM230, FTAM, In=175 A overload

Manufacturer's No: 3VA5217-7EC41-2AA0     Manufacturer: Siemens
circuit breaker 3VA5 UL Frame 250 breaking capacity class C 100 kA @ 480 V 4-pole, line protection TM230,  FTAM, In=175 A overload protection, 100%...

Availability On Request

£1,357.20
  • Circuit breaker 3VA5 UL Frame 250
  • Breaking capacity: 100 kA @ 480 V
  • 4-pole, line protection TM230, FTAM
  • In=175 A overload protection
  • Ir=175 A permanently set short-circuit protection
  • Ii=5...10 x In
  • N conductor unprotected without connection
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA5217-7EC41-2AA0
Net Weight -
2.80kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Adjustment range undelayed short-circuit release -
875 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
175 Ampere
Power loss -
35 Watt
Rated permanent current Iu -
175 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
110 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever

Availability On Request

£1,357.20
