3VA52251MH310AA0

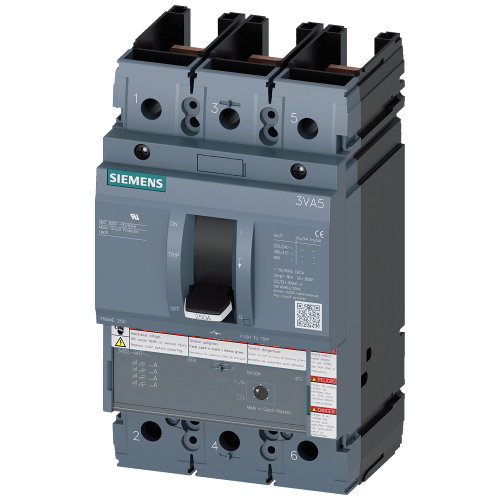

Circuit breaker 3VA5 UL frame 250 3-pole, starter protection TM120M, AM, In=250 A

Manufacturer's No: 3VA5225-1MH31-0AA0     Manufacturer: Siemens
Circuit breaker 3VA5 UL frame 250 3-pole, starter protection TM120M,  AM, In=250 A

Availability On Request

£1,045.80
  • Circuit breaker model: 3VA5 UL Frame 250
  • Configuration: 3-pole
  • Starter protection: TM120M, AM
  • Rated current: 250A
  • Short-circuit protection: Ii=5...10 x In
  • Overload protection: Not included
  • Connection: Not required

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA5225-1MH31-0AA0
Net Weight -
2.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121601

Technical Specification

Adjustment range undelayed short-circuit release -
1250 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Power loss -
58 Watt
Rated permanent current Iu -
250 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
110 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever

Availability On Request

£1,045.80
