3VA52806EC311AA0

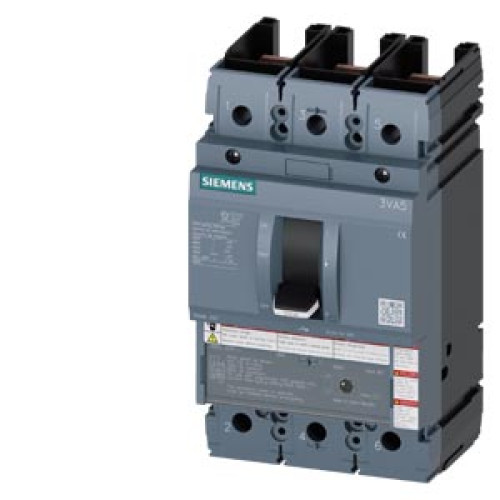

Circuit breaker 3VA5 UL frame 250 breaking capacity class H 65 kA @ 480 V 3-pole

Manufacturer's No: 3VA5280-6EC31-1AA0     Manufacturer: Siemens
Circuit breaker 3VA5 UL frame 250 breaking capacity class H 65 kA @ 480 V 3-pole

Availability On Request

£657.42
  • Circuit Breaker: 3VA5 UL Frame 250
  • Breaking Capacity: 65 kA @ 480 V
  • Configuration: 3-pole
  • Line Protection: TM230
  • Overload Protection: In=80 A
  • Short-Circuit Protection: Ir=80 A
  • Short-Circuit Protection Setting: Ii=5-10 x In
  • UL 489 SB (Naval) certified
  • Maximum Operating Temperature: 50°C

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA5280-6EC31-1AA0
Net Weight -
2.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121601

Technical Specification

Adjustment range undelayed short-circuit release -
400 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
80 Ampere
Power loss -
20 Watt
Rated permanent current Iu -
80 Ampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever

Availability On Request

£657.42
