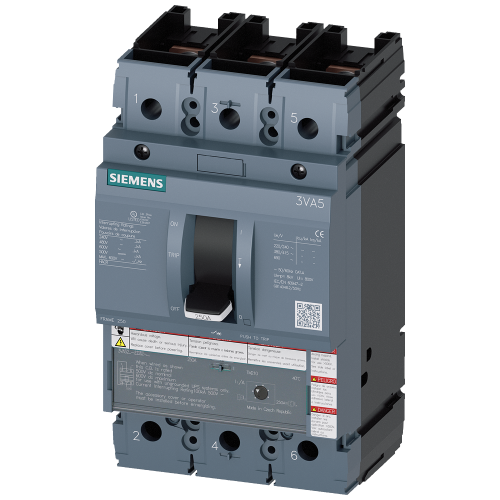

3VA52956ED320AA0

circuit breaker 3VA5 UL Frame 250 breaking capacity class H 65 kA @ 480 V 3-pole, line protection TM210, FTFM, In=15 A overload p

Manufacturer's No: 3VA5295-6ED32-0AA0     Manufacturer: Siemens
circuit breaker 3VA5 UL Frame 250 breaking capacity class H 65 kA @ 480 V 3-pole, line protection TM210,  FTFM, In=15 A overload protection Ir=15 A...

Availability On Request

£567.24
  • Circuit Breaker: 3VA5 UL Frame 250
  • Breaking Capacity: 65 kA @ 480V
  • Configuration: 3-pole
  • Line Protection: TM210, FTFM
  • Overload Protection: In=15A
  • Short-Circuit Protection: Ir=15A
  • Short-Circuit Protection Setting: Ii=23.3 x In
  • Nut Keeper Kit included on two sides
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA5295-6ED32-0AA0
Net Weight -
2.10kg

Additional Product Information

Commodity Code -
8536200020
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Adjustment range undelayed short-circuit release -
400 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
15 Ampere
Position of connection for main current circuit -
Front
Power loss -
5.1 Watt
Rated permanent current Iu -
15 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
70 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection
