3VA53256GF412AA0

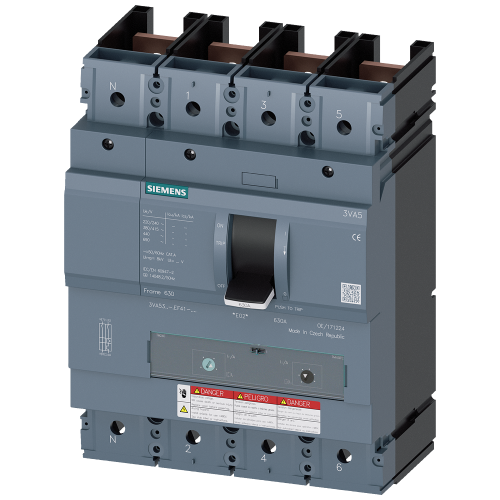

circuit breaker 3VA5 UL Frame 400 breaking capacity class H 65 kA @ 480 V 4-pole, line protection TM240, ATAM, In=250 A overload

Manufacturer's No: 3VA5325-6GF41-2AA0     Manufacturer: Siemens
circuit breaker 3VA5 UL Frame 400 breaking capacity class H 65 kA @ 480 V 4-pole, line protection TM240,  ATAM, In=250 A overload protection, 100%-...

Availability On Request

£1,676.20
  • Circuit breaker 3VA5 UL Frame 400
  • Breaking capacity: 65 kA @ 480 V
  • 4-pole, line protection TM240, ATAM
  • In=250 A overload protection, Ir=200 A
  • Short-circuit protection: Ii=5-10 x In
  • Neutral conductor protection
  • No connection for 1 pole
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA5325-6GF41-2AA0
Net Weight -
6.82kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
UNSPSC -
26101109

Technical Specification

Position of connection for main current circuit -
Other
Type of electrical connection of main circuit -
Other
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
70 kiloampere
Adjustment range undelayed short-circuit release -
1250 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
200 Ampere
Power loss -
59 Watt
Rated permanent current Iu -
250 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
70 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
