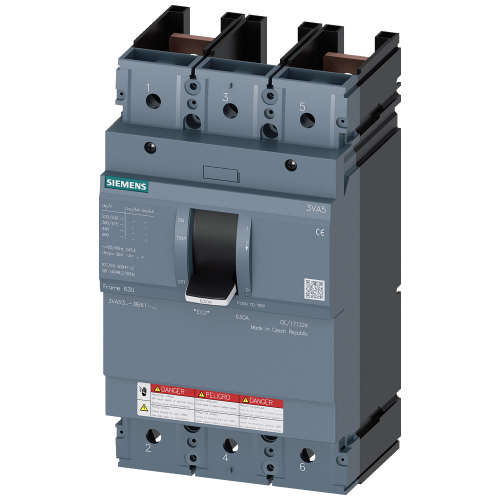

3VA53401BB610AA0

Molded case switch 3VA5 UL frame 400 max. short-circuit breaking capacity 100 kA

Manufacturer's No: 3VA5340-1BB61-0AA0     Manufacturer: Siemens
Molded case switch 3VA5 UL frame 400 max. short-circuit breaking capacity 100 kA

Availability On Request

£1,121.62
  • Molded case switch 3VA5 UL frame 400
  • Maximum short circuit current rating: 100 kA @ 480 V
  • 2-pole, line protection MCS110
  • Rated current: 400A
  • Self-protection with no overload protection
  • Instantaneous trip current: 15 x In
  • No connection required

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA5340-1BB61-0AA0
Net Weight -
4.95kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121601

Technical Specification

Adjustment range undelayed short-circuit release -
6000 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
2
Power loss -
80 Watt
Rated permanent current Iu -
400 Ampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever

Availability On Request

£1,121.62
