3VA53407EF410AA0

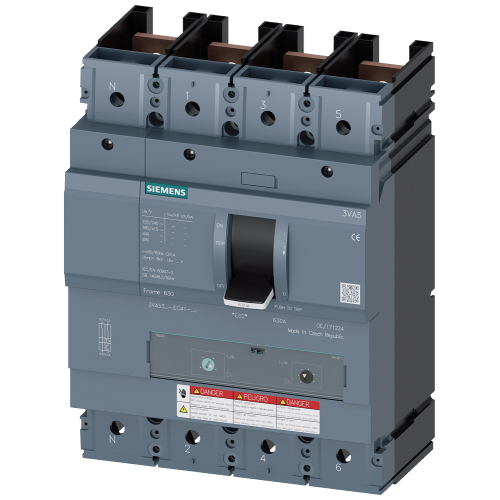

Circuit breaker 3VA5 UL frame 400 breaking capacity class C 100 kA @ 480 V 4-pole

Manufacturer's No: 3VA5340-7EF41-0AA0     Manufacturer: Siemens
Circuit breaker 3VA5 UL frame 400 breaking capacity class C 100 kA @ 480 V 4-pole

Availability On Request

£1,953.19
  • Circuit breaker 3VA5 UL Frame 400
  • Breaking capacity: 100 kA @ 480 V
  • 4-pole, line protection TM240, ATAM
  • Rated current: In=400 A
  • Overload protection: Ir=320 A to 400 A
  • Short-circuit protection: Ii=5 to 10 x In
  • N conductor unprotected without connection

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA5340-7EF41-0AA0
Net Weight -
6.82kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121601

Technical Specification

Adjustment range undelayed short-circuit release -
2000 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
320 Ampere
Power loss -
92 Watt
Rated permanent current Iu -
400 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
110 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever

Availability On Request

£1,953.19
