3VA55606EC361AA0

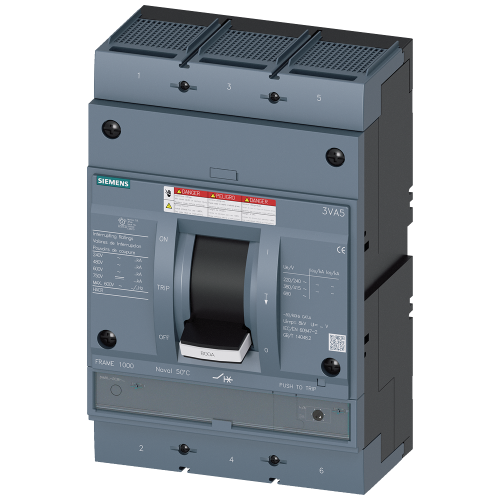

Circuit breaker 3VA5 UL frame 800 breaking capacity class H 65 kA @ 480 V 3-pole

Manufacturer's No: 3VA5560-6EC36-1AA0     Manufacturer: Siemens
Circuit breaker 3VA5 UL frame 800 breaking capacity class H 65 kA @ 480 V 3-pole

Availability On Request

£5,954.37
  • Circuit Breaker: 3VA5 UL Frame 800
  • Breaking Capacity: 65 kA @ 480V
  • Configuration: 3-Pole, Line Protection
  • Overload Protection: In=600A
  • Short-Circuit Protection: Ir=600A
  • Short-Circuit Protection Setting: Ii=5-10 x In
  • UL489 SB (Naval) Certified
  • Temperature Rating: 50°C
  • Cable Connection: Two-Sided
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA5560-6EC36-1AA0
Net Weight -
14.59kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121601

Technical Specification

Adjustment range undelayed short-circuit release -
3000 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
600 Ampere
Position of connection for main current circuit -
Front
Power loss -
162 Watt
Rated permanent current Iu -
600 Ampere
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
