3VA55705EC321AA0

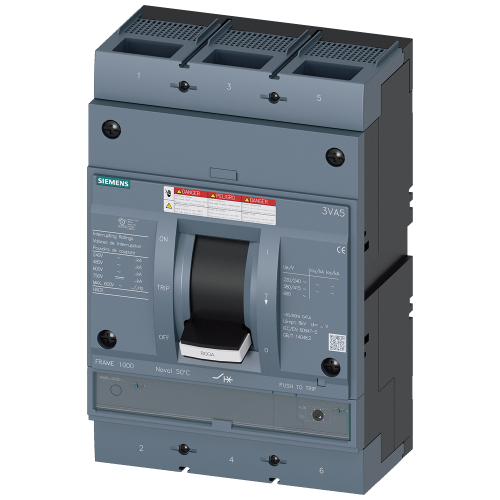

Circuit breaker 3VA5 UL frame 800 breaking capacity class M 35 kA @ 480 V 3-pole

Manufacturer's No: 3VA5570-5EC32-1AA0     Manufacturer: Siemens
Circuit breaker 3VA5 UL frame 800 breaking capacity class M 35 kA @ 480 V 3-pole

Availability On Request

£2,505.92
  • Circuit Breaker: 3VA5 UL Frame 800
  • Breaking Capacity: 35 kA @ 480V
  • Configuration: 3-Pole, Line Protection
  • Overload Protection: In=700A
  • Short-Circuit Protection: Ir=700A
  • Short-Circuit Protection Setting: Ii=5-10 x In
  • UL489 SB (Naval) Certified
  • Operating Temperature: 50°C
  • Includes Nut Keeper Kit

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA5570-5EC32-1AA0
Net Weight -
12.76kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121601

Technical Specification

Adjustment range undelayed short-circuit release -
3500 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
700 Ampere
Position of connection for main current circuit -
Front
Power loss -
183 Watt
Rated permanent current Iu -
700 Ampere
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection
