3VA55800BB320AA0

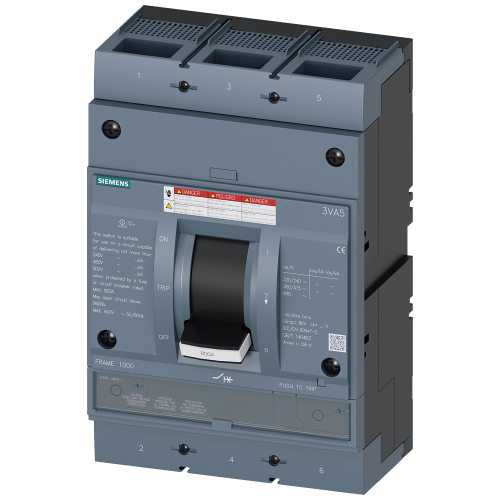

Molded case switch 3VA5 UL frame 800 max. short-circuit breaking capacity 65 kA

Manufacturer's No: 3VA5580-0BB32-0AA0     Manufacturer: Siemens
Molded case switch 3VA5 UL frame 800 max. short-circuit breaking capacity 65 kA

Availability On Request

£2,535.18
  • Molded case switch 3VA5 UL frame 800
  • Max short-circuit current rating: 65kA @ 480V
  • 3-pole MCS110
  • Rated current: 800A
  • Self-protection with Ii=12 x In
  • Busbar connection

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA5580-0BB32-0AA0
Net Weight -
12.76kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121601

Technical Specification

Adjustment range undelayed short-circuit release -
9600 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Position of connection for main current circuit -
Front
Power loss -
210 Watt
Rated permanent current Iu -
800 Ampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection

Availability On Request

£2,535.18
