3VA55805EC361AA0

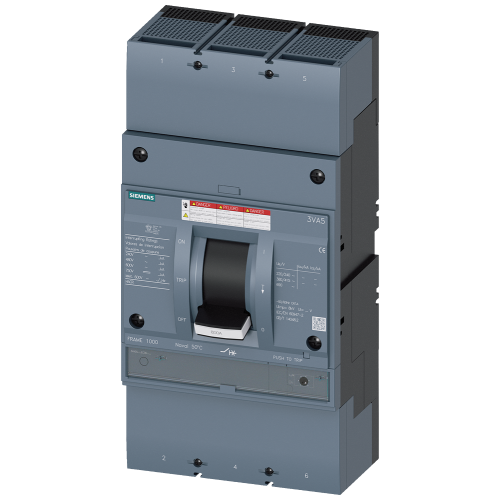

Circuit breaker 3VA5 UL frame 800 breaking capacity class M 35 kA @ 480 V 3-pole

Manufacturer's No: 3VA5580-5EC36-1AA0     Manufacturer: Siemens
Circuit breaker 3VA5 UL frame 800 breaking capacity class M 35 kA @ 480 V 3-pole

Availability On Request

£6,709.88
  • Circuit Breaker: 3VA5 UL Frame 800
  • Breaking Capacity: 35 kA @ 480V
  • Configuration: 3-pole, Line Protection
  • Overload Protection: In=800A
  • Short-Circuit Protection: Ir=800A
  • Short-Circuit Protection Setting: Ii=5-10 x In
  • UL489 SB (Naval) Certified
  • Cable Connection: Two-sided, 50°C temperature rating
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA5580-5EC36-1AA0
Net Weight -
16.99kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121601

Technical Specification

Adjustment range undelayed short-circuit release -
4000 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
800 Ampere
Position of connection for main current circuit -
Front
Power loss -
210 Watt
Rated permanent current Iu -
800 Ampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever

Availability On Request

£6,709.88
