3VA57806EC310AA0

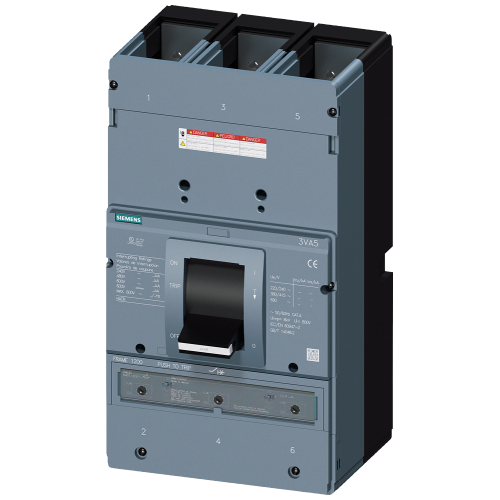

circuit breaker 3VA5 UL frame 1200 breaking capacity class H 65kA @ 480 V 3-pole, line protection TM230, FTAM, In=800A overload

Manufacturer's No: 3VA5780-6EC31-0AA0     Manufacturer: Siemens
circuit breaker 3VA5 UL frame 1200 breaking capacity class  H 65kA @ 480 V 3-pole, line protection TM230,  FTAM, In=800A overload protection Ir=800...

Availability On Request

£2,952.20
  • Circuit Breaker 3VA5 UL Frame 1200
  • Breaking Capacity: 65kA @ 480V
  • 3-Pole, Line Protection TM230
  • In=800A Overload Protection
  • Ir=800A Fixed Short Circuit Protection
  • Ii=5-10 x In Without Connection

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA5780-6EC31-0AA0
Net Weight -
24.50kg

Additional Product Information

Commodity Code -
85362099
Country of Origin -
MX
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Adjustment range undelayed short-circuit release -
4000 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
800 Ampere
Power loss -
134 Watt
Rated permanent current Iu -
800 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
70 kiloampere
Rated voltage -
600 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
