3VA61406JQ412AA0

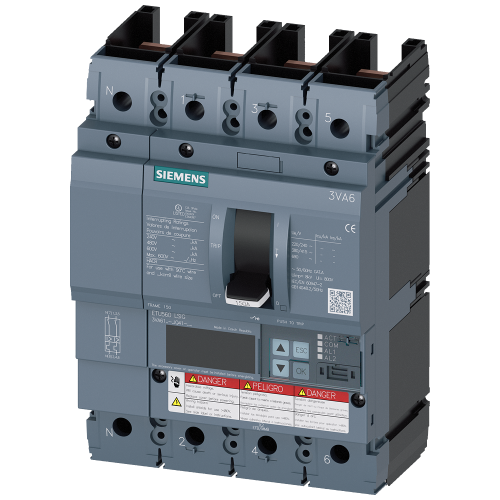

Circuit breaker 3VA6 UL frame 150 breaking capacity class H 65 kA @ 480 V 4-pole

Manufacturer's No: 3VA6140-6JQ41-2AA0     Manufacturer: Siemens
Circuit breaker 3VA6 UL frame 150 breaking capacity class H 65 kA @ 480 V 4-pole

Availability On Request

£1,614.85
  • Circuit breaker 3VA6 UL Frame 150
  • Breaking capacity: 65 kA @ 480 V
  • 4-pole, line protection
  • Overload protection: In=40 A, 100% rated Ir=16 A...40 A
  • Short-circuit protection: Isd=0.6..10x In
  • Ground-fault protection: Ig=0.375...1 x In, tg=0.05-0.8s
  • Neutral conductor protection adjustable up to 160%

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA6140-6JQ41-2AA0
Net Weight -
2.90kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP40
Position of connection for main current circuit -
Other
Type of electrical connection of main circuit -
Other
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
85 kiloampere
Adjustment range short-term delayed short-circuit release -
24 Ampere
Adjustment range undelayed short-circuit release -
60 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Integrated earth fault protection -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
15 Ampere
Power loss -
2.4 Watt
Rated permanent current Iu -
40 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
85 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever

Availability On Request

£1,614.85
