3VA61600KQ410AA0

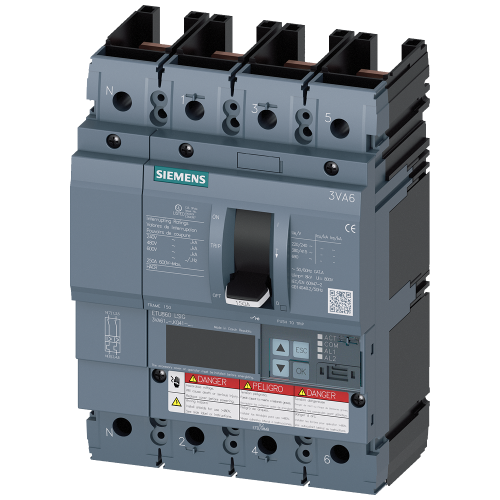

Circuit breaker 3VA6 UL frame 150 breaking capacity class E 200 kA @ 480 V

Manufacturer's No: 3VA6160-0KQ41-0AA0     Manufacturer: Siemens
Circuit breaker 3VA6 UL frame 150 breaking capacity class E 200 kA @ 480 V

Availability On Request

£1,876.29
  • Circuit breaker 3VA6 UL Frame 150
  • Breaking capacity: 200 kA @ 480 V

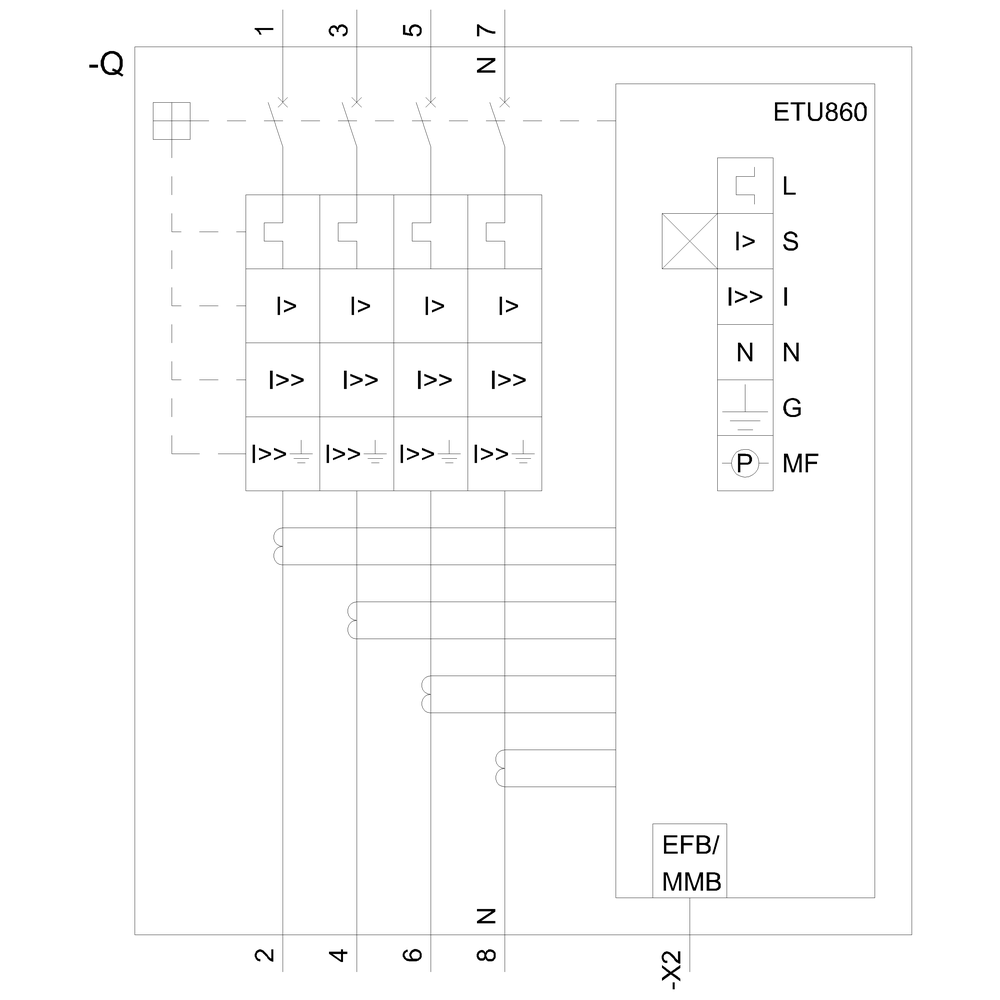

  • 4-pole, line protection with ETU860
  • LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault) protection
  • Overload protection: In=60 A, Ir=24 A ... 60 A
  • Short-circuit protection: Isd=0.6..10x In, Ii=1.5..12x In
  • Neutral conductor protection adjustable up to 100%
  • Ground-fault protection: Ig=0.4...1 x In, tg=0.05-0.8s
  • Operation possible without connection

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA6160-0KQ41-0AA0
Net Weight -
3.20kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121601

Technical Specification

Adjustment range short-term delayed short-circuit release -
36 Ampere
Adjustment range undelayed short-circuit release -
90 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Integrated earth fault protection -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
24 Ampere
Power loss -
2.4 Watt
Rated permanent current Iu -
60 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
150 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever

Availability On Request

£1,876.29
