3VA62105KQ312AA0

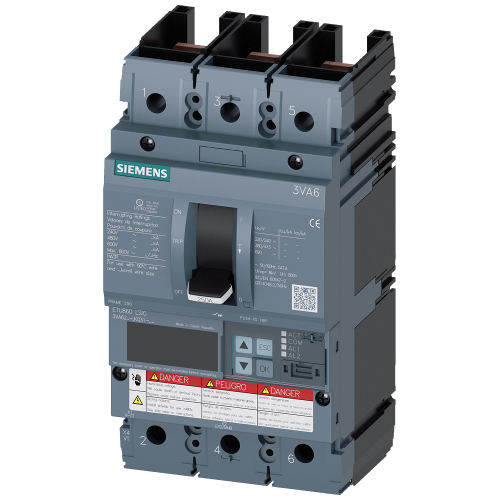

Circuit breaker 3VA6 UL frame 250 breaking capacity class M 35 kA @ 480 V 3-pole

Manufacturer's No: 3VA6210-5KQ31-2AA0     Manufacturer: Siemens
Circuit breaker 3VA6 UL frame 250 breaking capacity class M 35 kA @ 480 V 3-pole

Availability On Request

£2,114.67
  • Circuit Breaker: 3VA6 UL Frame 250
  • Breaking Capacity: 35 kA @ 480V
  • Configuration: 3-Pole, Line Protection
  • Overload Protection: In=100A, 100% Rated Ir=40A...100A
  • Short-Circuit Protection: Isd=0.6-10x In
  • Ground-Fault Protection: Ig=0.2-1 x In, tg=0.05-0.8s
  • Optional Neutral Conductor Protection with External Current Transformer
  • LSIG (Long-Time, Short-Time, Instantaneous, Ground) Protection
  • Suitable for Class M Applications

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA6210-5KQ31-2AA0
Net Weight -
2.30kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP40
Position of connection for main current circuit -
Other
Type of electrical connection of main circuit -
Other
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
55 kiloampere
Adjustment range short-term delayed short-circuit release -
60 Ampere
Adjustment range undelayed short-circuit release -
150 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Integrated earth fault protection -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
40 Ampere
Power loss -
6.7 Watt
Rated permanent current Iu -
100 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever

Availability On Request

£2,114.67
