3VA62257HN312AA0

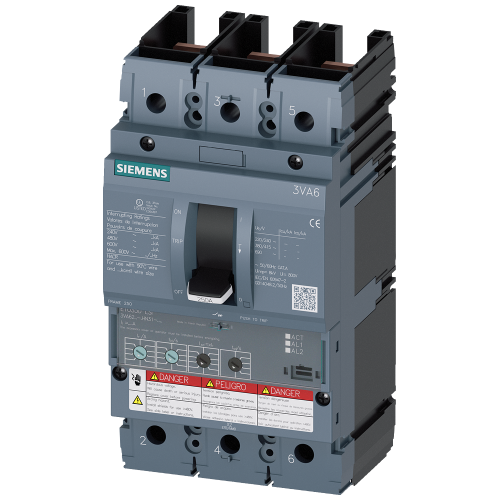

Circuit breaker 3VA6 UL frame 250 breaking capacity class C 100 kA @ 480 V 3-pole

Manufacturer's No: 3VA6225-7HN31-2AA0     Manufacturer: Siemens
Circuit breaker 3VA6 UL frame 250 breaking capacity class C 100 kA @ 480 V 3-pole

Availability On Request

£1,484.10
  • Circuit Breaker: 3VA6 UL Frame 250
  • Breaking Capacity: 100 kA @ 480 V, Class C
  • Configuration: 3-pole, line protection
  • Overload Protection: In=250 A, Ir=100% rated Ir=100 A...250 A
  • Short-Circuit Protection: Isd=1.5...10 x Ir, Ii=10 x In
  • Features: ETU350, LSI (Long-time, Short-time, Instantaneous) protection
  • Connection: Without connection

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA6225-7HN31-2AA0
Net Weight -
2.30kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP40
Position of connection for main current circuit -
Other
Type of electrical connection of main circuit -
Other
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
110 kiloampere
Adjustment range short-term delayed short-circuit release -
375 Ampere
Adjustment range undelayed short-circuit release -
2500 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
100 Ampere
Power loss -
42 Watt
Rated permanent current Iu -
250 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
110 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
