3VA62258JQ412AA0

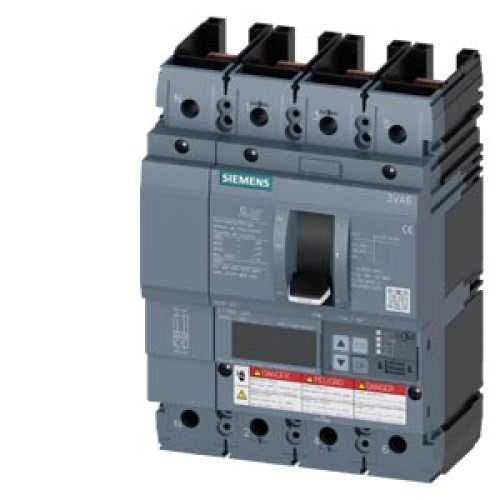

Circuit breaker 3VA6 UL frame 250 breaking capacity class L 150 kA @ 480 V 4-pole

Manufacturer's No: 3VA6225-8JQ41-2AA0     Manufacturer: Siemens
Circuit breaker 3VA6 UL frame 250 breaking capacity class L 150 kA @ 480 V 4-pole

Availability On Request

£2,991.29
  • Circuit breaker: 3VA6 UL Frame 250
  • Breaking capacity: 150 kA @ 480 V
  • 4-pole, line protection
  • Overload protection: In=250 A, Ir=100 A...250 A
  • Short-circuit protection: Isd=0.6..10x In
  • Ground-fault protection: Ig=0.2...1 x In, tg=0.05-0.8s
  • Neutral conductor protection: Adjustable (OFF, up to 100%)
  • ETU560, LSIG for enhanced protection

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA6225-8JQ41-2AA0
Net Weight -
2.90kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP40
Position of connection for main current circuit -
Other
Type of electrical connection of main circuit -
Other
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
150 kiloampere
Adjustment range short-term delayed short-circuit release -
150 Ampere
Adjustment range undelayed short-circuit release -
375 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Integrated earth fault protection -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
100 Ampere
Power loss -
42 Watt
Rated permanent current Iu -
250 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
150 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever

Availability On Request

£2,991.29
