3VA63257KL312AA0

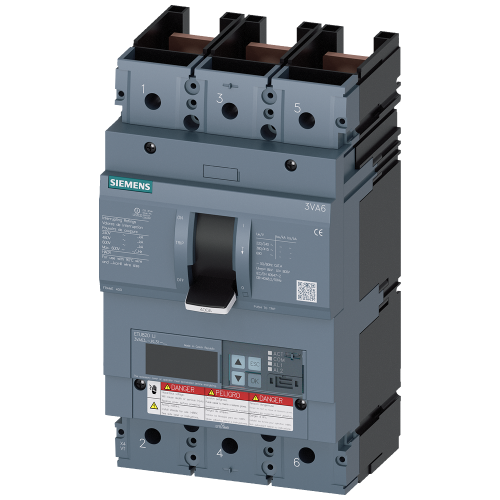

Circuit breaker 3VA6 UL frame 400 breaking capacity class C 100 kA @ 480 V 3-pole

Manufacturer's No: 3VA6325-7KL31-2AA0     Manufacturer: Siemens
Circuit breaker 3VA6 UL frame 400 breaking capacity class C 100 kA @ 480 V 3-pole

Availability On Request

£2,576.04
  • Circuit Breaker: 3VA6 UL Frame 400
  • Breaking Capacity: 100 kA @ 480V
  • Number of Poles: 3
  • Line Protection: ETU820, LI
  • Overload Protection: In=250A
  • Short-Circuit Protection: Ii=1.5...12 x In
  • Rated Current: Ir=100A...250A
  • Class: C
  • Suitable for applications requiring high breaking capacity

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA6325-7KL31-2AA0
Net Weight -
5.30kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP40
Position of connection for main current circuit -
Other
Type of electrical connection of main circuit -
Other
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
110 kiloampere
Adjustment range undelayed short-circuit release -
375 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
100 Ampere
Power loss -
27 Watt
Rated permanent current Iu -
250 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
110 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
