3VA65607JP422AA0

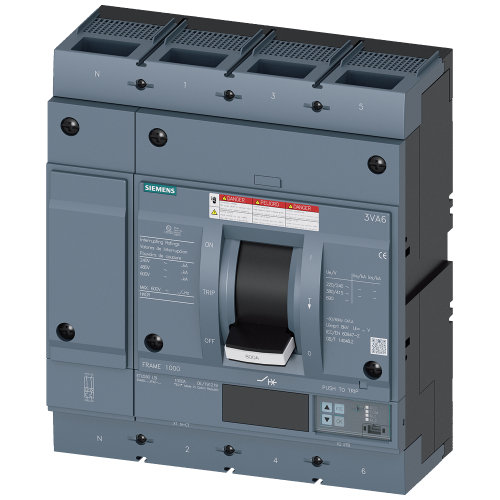

Circuit breaker 3VA6 UL frame 800 breaking capacity class C 100 kA @ 480 V 4-pole

Manufacturer's No: 3VA6560-7JP42-2AA0     Manufacturer: Siemens
Circuit breaker 3VA6 UL frame 800 breaking capacity class C 100 kA @ 480 V 4-pole

Availability On Request

£5,131.80
  • Circuit breaker 3VA6 UL Frame 800
  • Breaking capacity: 100 kA @ 480 V
  • 4-pole, line protection
  • Overload protection: In=600 A, 100% rated Ir=240 A
  • Short-circuit protection: Isd=0.6-12x In, Ii=1.5-12x In
  • Neutral conductor protection adjustable (OFF, up to 130%)

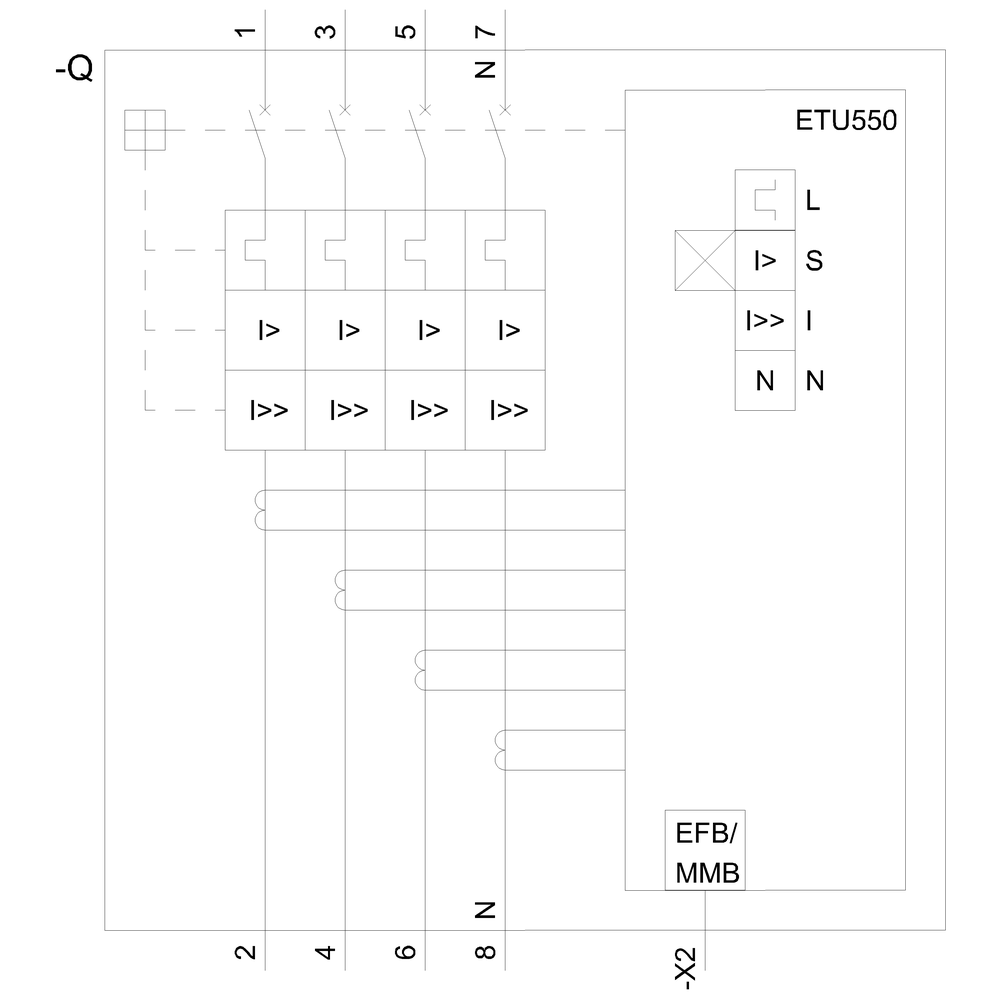

  • ETU550, LSI
  • Nut keeper kit included

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA6560-7JP42-2AA0
Net Weight -
16.32kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121601

Technical Specification

Adjustment range short-term delayed short-circuit release -
360 Ampere
Adjustment range undelayed short-circuit release -
900 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
250 Ampere
Position of connection for main current circuit -
Front
Power loss -
151 Watt
Rated permanent current Iu -
600 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
110 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection

Availability On Request

£5,131.80
