3VA65806KT462AA0

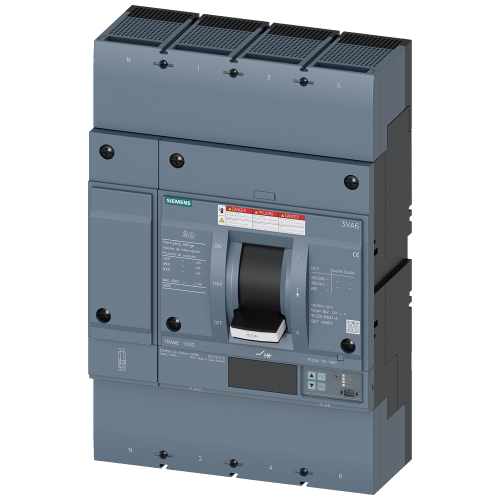

Circuit breaker 3VA6 UL frame 800 breaking capacity class H 65 kA @ 480 V 4-pole

Manufacturer's No: 3VA6580-6KT46-2AA0     Manufacturer: Siemens
Circuit breaker 3VA6 UL frame 800 breaking capacity class H 65 kA @ 480 V 4-pole

Availability On Request

£8,752.01
  • Circuit Breaker: 3VA6 UL Frame 800
  • Breaking Capacity: 65 kA @ 480 V
  • Configuration: 4-pole, line protection
  • Overload Protection: In=800 A, Ir=315 A
  • Short-Circuit Protection: Isd=0.6-10x In
  • Ground Fault Alarm: Signaled via EFB300 or COM cable
  • Neutral Conductor Protection: Adjustable up to 160%
  • Connection: Two-sided via cable

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA6580-6KT46-2AA0
Net Weight -
23.30kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121601

Technical Specification

Adjustment range short-term delayed short-circuit release -
480 Ampere
Adjustment range undelayed short-circuit release -
1200 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Integrated earth fault protection -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Overload release current setting -
315 Ampere
Position of connection for main current circuit -
Front
Power loss -
231 Watt
Rated permanent current Iu -
800 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
85 kiloampere
Rated voltage -
690 Volt
Type of control element -
Rocker lever

Availability On Request

£8,752.01
