3VA66106HM320AA0

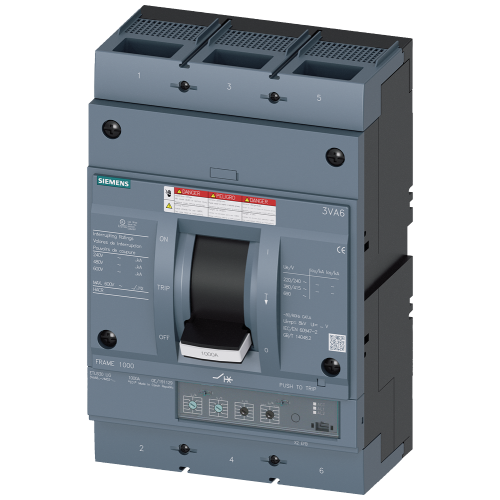

Circuit breaker 3VA6 UL frame 1000 breaking capacity class H 65 kA @ 480 V 3-pole

Manufacturer's No: 3VA6610-6HM32-0AA0     Manufacturer: Siemens
Circuit breaker 3VA6 UL frame 1000 breaking capacity class H 65 kA @ 480 V 3-pole

Availability On Request

£4,483.08
  • Circuit Breaker: 3VA6 UL Frame 1000
  • Breaking Capacity: 65 kA @ 480V
  • Configuration: 3-Pole, Line Protection
  • Overload Protection: In=1000A, Ir=400A...1000A
  • Short-Circuit Protection: Ii=1.5...10 x In
  • Ground-Fault Protection: IG=0.2...1 x In, tg=0.1/0.3s
  • Includes Nut Keeper Kit
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA6610-6HM32-0AA0
Net Weight -
12.76kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121601

Technical Specification

Adjustment range undelayed short-circuit release -
1500 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Integrated earth fault protection -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
400 Ampere
Position of connection for main current circuit -
Front
Power loss -
330 Watt
Rated permanent current Iu -
1000 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
85 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever
Type of electrical connection of main circuit -
Screw connection

Availability On Request

£4,483.08
