3VA68166HN310AA0

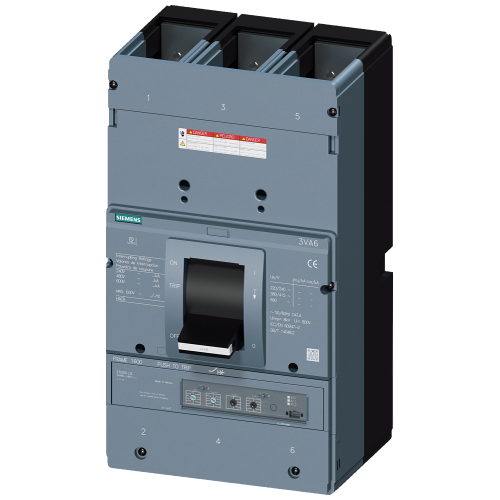

circuit breaker 3VA6 UL frame 1600 breaking capacity class H 65kA @ 480 V 3-pole, line protection ETU350, LSI, In=1600A overload

Manufacturer's No: 3VA6816-6HN31-0AA0     Manufacturer: Siemens
circuit breaker 3VA6 UL frame 1600 breaking capacity class  H 65kA @ 480 V 3-pole, line protection ETU350,  LSI, In=1600A overload protection Ir=60...

Availability On Request

£7,308.00
  • Circuit Breaker: 3VA6 UL Frame 1600
  • Breaking Capacity: 65kA @ 480V
  • Configuration: 3-Pole
  • Line Protection: ETU350
  • Overload Protection: Ir = 600A - 1600A
  • Short Circuit Protection: Isd = 1.5-10 x Ir
  • Instantaneous Protection: Ii = 1.5 x In
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA6816-6HN31-0AA0
Net Weight -
25.81kg

Additional Product Information

Commodity Code -
85362099
Country of Origin -
MX
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Adjustment range undelayed short-circuit release -
12000 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Number of auxiliary contacts as change-over contact -
0
Number of poles -
3
Overload release current setting -
600 Ampere
Power loss -
433 Watt
Rated permanent current Iu -
1600 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
70 kiloampere
Rated voltage -
600 Volt
Type of control element -
Rocker lever

Availability On Request

£7,308.00
