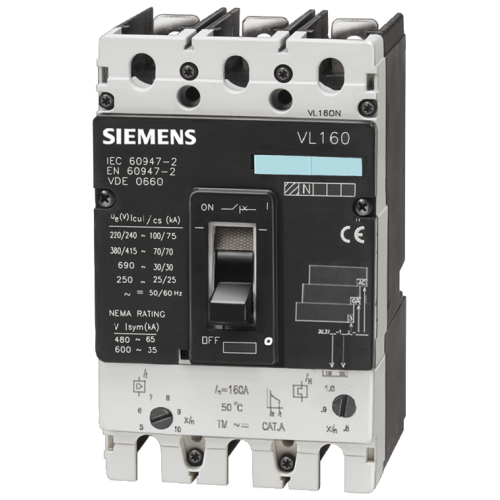

3VL27163DK338TD1

circuit breaker VL160L very high breaking capacity Icu=100kA, 415V AC 3-pole, starter combination Trip Unit magnetic In=160A, rate

Manufacturer's No: 3VL2716-3DK33-8TD1     Manufacturer: Siemens
circuit breaker VL160L very high breaking capacity Icu=100kA, 415V AC 3-pole, starter combination Trip Unit magnetic In=160A, rated current II=1250...

Availability On Request

POA
  • Circuit breaker VL160L
    • Very high breaking capacity: Icu=100kA, 415V AC, 3-pole
    • Starter combination Trip Unit magnetic: In=160A
    • Rated current: II=1250...2500A
    • Short-circuit protection: Shunt release 208-277V AC
    • Auxiliary/alarm switch mounting kit: 2 AUX (1 NO+1 NC) + 1 AS (1 NO)


Product

Manufacturer Material ID -
3VL2716-3DK33-8TD1
Net Weight -
2.20kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
2
Number of poles -
3
Power loss -
40 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
100 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of electrical connection of main circuit -
Frame clamp
