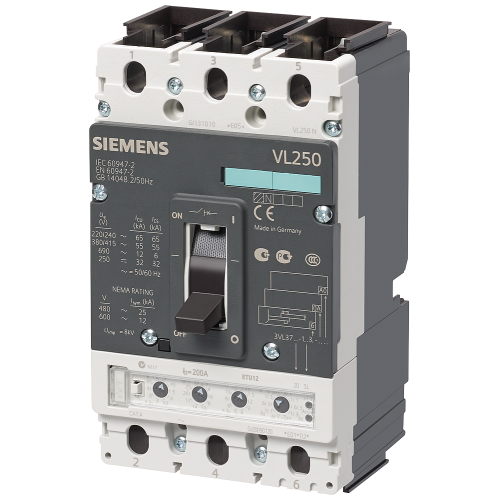

3VL37203LB330AD1

circuit breaker VL250L very high breaking capacity Icu=100kA, 415V AC 3-pole, line protection Electronic Trip Unit ETU10, LI In=20

Manufacturer's No: 3VL3720-3LB33-0AD1     Manufacturer: Siemens
circuit breaker VL250L very high breaking capacity Icu=100kA, 415V AC 3-pole, line protection Electronic Trip Unit ETU10, LI In=200A, rated current...

Availability On Request

POA
  • Circuit breaker VL250L
    • Very high breaking capacity: Icu=100kA, 415V AC
    • 3-pole, line protection
    • Electronic Trip Unit ETU10
    • LI In=200A rated current
    • Overload protection: II=1.25 to 11xIN
    • Short-circuit protection without auxiliary release
    • Box terminal
    • Shipbuilding certificate for LRS, DNV, and gL
  • Auxiliary/alarm switch mounting kit
    • 2 AUX (1 NO+1 NC) + 1 AS (1 NO)


Product

Manufacturer Material ID -
3VL3720-3LB33-0AD1
Net Weight -
2.50kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
2
Number of poles -
3
Power loss -
42 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
100 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of electrical connection of main circuit -
Frame clamp
