3VT37632AA360AA0

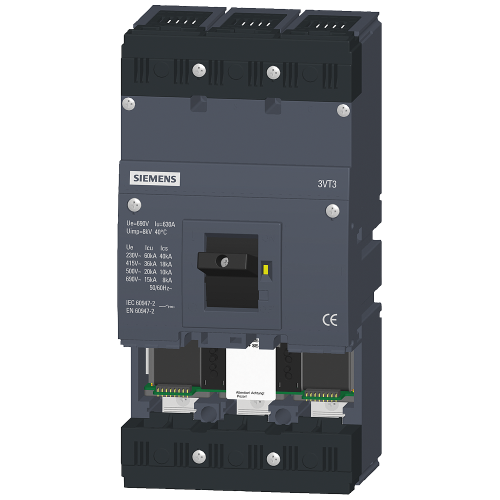

circuit breaker 3VT3 standard breaking capacity Icu=36kA, 415V AC 3-pole; circuit breaker w/o Electr

Manufacturer's No: 3VT3763-2AA36-0AA0     Manufacturer: Siemens
circuit breaker 3VT3 standard breaking capacity Icu=36kA, 415V AC 3-pole; circuit breaker w/o Electr

Availability On Request

POA
  • Circuit breaker model: 3VT3
  • Standard breaking capacity: 36kA
  • Voltage: 415V AC
  • Configuration: 3-pole
  • Electronic Trip Unit: Not included
  • Auxiliary release: Not included
  • Auxiliary/alarm switch: Not included


Product

Manufacturer Material ID -
3VT3763-2AA36-0AA0
Net Weight -
5.98kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Overload release current setting -
- Ampere
Rated voltage -
- Volt
Adjustment range short-term delayed short-circuit release -
- Ampere
Adjustment range undelayed short-circuit release -
- Ampere
Device construction -
UN
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Rated permanent current Iu -
630 Ampere
Number of poles -
3
Number of auxiliary contacts as change-over contact -
0
Degree of protection (IP) -
IP40
Position of connection for main current circuit -
Front side
Type of electrical connection of main circuit -
Screw connection
Type of control element -
Rocker lever
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
36 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Motor drive optional -
DIN rail (top hat rail) mounting optional -
Complete device with protection unit -
