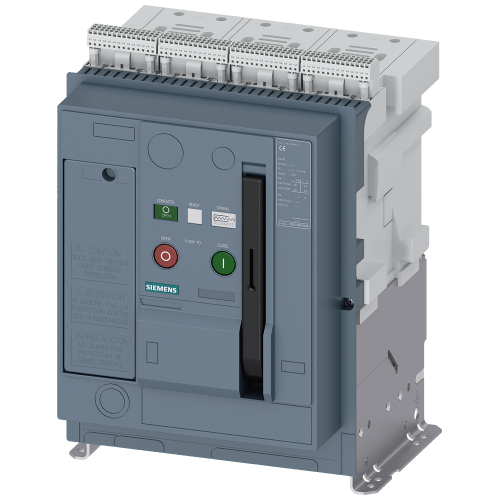

3WA11062AA023DA1

Non-automatic circuit breaker Fixed-mounted version, IEC 60947-2, frame size 1, 3-poles, In=630A up to 690V AC 50/60Hz, breaking c

Manufacturer's No: 3WA1106-2AA02-3DA1     Manufacturer: Siemens
Non-automatic circuit breaker Fixed-mounted version, IEC 60947-2, frame size 1, 3-poles, In=630A up to 690V AC 50/60Hz, breaking capacity N Icc=55/...

Availability On Request

£5,251.86
  • Non-automatic circuit breaker
  • Fixed-mounted version
  • IEC 60947-2, frame size 1, 3-poles
  • Rated current (In): 630A
  • Rated voltage: up to 690V AC 50/60Hz
  • Breaking capacity: N Icc=55kA at 500V, 42kA at 690V
  • Rear connection: horizontal
  • Operating mechanism: manual and motorized (110-127 V AC / 110-125 V DC)
  • Storage status and ready-to-close signaling switches
  • Auxiliary switches: 2NO+2NC

Read more

  • Closing coil (CC): 100% OP (110-127 V AC / 110-125 V DC)
  • Shunt trip (ST): 100% OP (24-30 V DC)
  • Applicable for continuous duty
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video


Product

Manufacturer Material ID -
3WA1106-2AA02-3DA1
Net Weight -
43.57kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive integrated -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of poles -
3
Power loss -
30 Watt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Push button
Type of electrical connection of main circuit -
Rail connection

Availability On Request

£5,251.86
