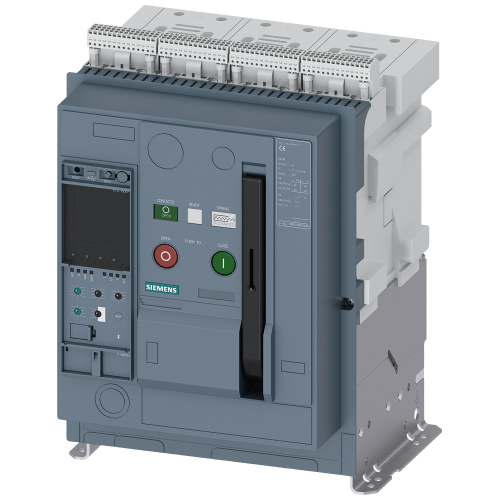

3WA11062AF023DA3

Fixed-mounted circuit breaker IEC 60947-2, frame size 1, 3-poles, In=630A up to 690V AC 50/60Hz, breaking capacity N Icu=55/42kA a

Manufacturer's No: 3WA1106-2AF02-3DA3     Manufacturer: Siemens
Fixed-mounted circuit breaker IEC 60947-2, frame size 1, 3-poles, In=630A up to 690V AC 50/60Hz, breaking capacity N Icu=55/42kA at 500/690V, Trip ...

Availability Back Order

£5,061.99
  • Fixed-mounted circuit breaker IEC 60947-2, frame size 1, 3-poles
  • Rated current: 630A, Voltage: up to 690V AC 50/60Hz
  • Breaking capacity: 55kA at 500V, 42kA at 690V
  • Trip unit: ETU600 LSIG upgrade ready
  • Features: Colordisplay, Bluetooth, USB interface
  • Protection functions: LT, ST, INST, GFx
  • N-protection requires external N-sensor
  • Includes trip alarm switch (1xCO)
  • Operating mechanism: Manual and motorized (M) 110-127 V AC / 110-125 V DC
  • Storage status and ready-to-close signaling switches

Read more

  • Auxiliary switches: 2NO+2NC
  • Closing coil (CC) 100% OP 110-127 V AC / 110-125 V DC
  • Shunt trip (ST) 100% OP 110-127 V AC / 110-125 V DC
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video


Product

Manufacturer Material ID -
3WA1106-2AF02-3DA3
Net Weight -
45.89kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
UNSPSC -
39122216

Technical Specification

Complete device with protection unit -
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive integrated -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of poles -
3
Power loss -
30 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of control element -
Push button
Type of electrical connection of main circuit -
Rail connection

Availability Back Order

£5,061.99
