3WA11068CE718FA1

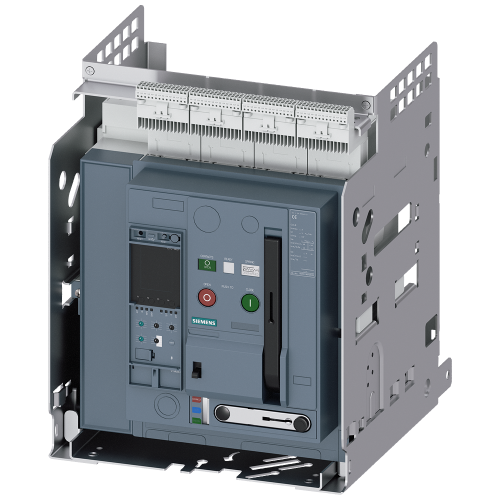

Withdrawable circuit breaker with guide frame, IEC 60947-2, frame size 1, 4-poles, N-pole left, In=630A, breaking capacity E, up t

Manufacturer's No: 3WA1106-8CE71-8FA1     Manufacturer: Siemens
Withdrawable circuit breaker with guide frame, IEC 60947-2, frame size 1, 4-poles, N-pole left, In=630A, breaking capacity E, up to 1000V AC 50/60H...

Availability On Request

£12,765.78
  • Withdrawable circuit breaker with guide frame
  • Complies with IEC 60947-2 standards
  • Frame size 1, 4-poles, N-pole left
  • Rated current (In) of 630A
  • Breaking capacity of E, up to 1000V AC 50/60Hz
  • High breaking capacity: Icu=85kA at 690V, 50kA at 1000V
  • Trip unit ETU600 LSI upgrade ready
  • Protection functions: LT, ST, INST, N-protection included
  • Trip alarm switch (1xCO) included
  • Colordisplay with Bluetooth and USB interface

Read more

  • Manual and motorized operating mechanism (M) 208-240 V AC / 220-250 V DC
  • Auxiliary switches: 4 normally open + 4 normally closed
  • Closing coil (CC) 100% OP 24-30 V DC for continuous duty
  • Remote trip alarm reset (RR) 24-30 V DC for momentary duty
  • Shunt trip (ST) 100% OP 24-30 V DC suitable for continuous duty
  • Rear connection vertical, guide frame with shutter and position signal switch (3xW)
  • Communication capability
  • Storage status and ready-to-close signaling switches
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video


Product

Manufacturer Material ID -
3WA1106-8CE71-8FA1
Net Weight -
95.58kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive integrated -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
4
Number of auxiliary contacts as normally open contact -
4
Number of poles -
4
Power loss -
55 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
85 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of control element -
Push button
Type of electrical connection of main circuit -
Rail connection
