3WA11082AF408HA1

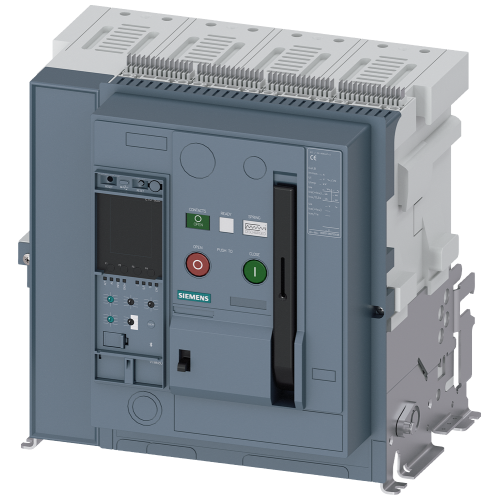

Withdrawable circuit breaker without guide frame, IEC 60947-2, frame size 1, 4-poles, N-pole left, In=800A up to 690V AC 50/60Hz,

Manufacturer's No: 3WA1108-2AF40-8HA1     Manufacturer: Siemens
Withdrawable circuit breaker without guide frame, IEC 60947-2, frame size 1, 4-poles, N-pole left, In=800A up to 690V AC 50/60Hz, breaking capacity...

Availability On Request

£8,594.30
  • Withdrawable circuit breaker without guide frame
  • IEC 60947-2, frame size 1, 4-poles, N-pole left
  • Rated current: 800A
  • Voltage: up to 690V AC 50/60Hz
  • Breaking capacity: 55kA at 500V, 42kA at 690V
  • Trip unit: ETU600 LSIG upgrade ready
  • Features: Colordisplay, Bluetooth, USB interface
  • Protection functions: LT, ST, INST, GFx
  • Includes N-protection with internal N-sensor available
  • Trip alarm switch (1xCO) included

Read more

  • Operating mechanism: Manual and motorized (208-240 V AC / 220-250 V DC)
  • Storage status and ready-to-close signaling switches
  • Auxiliary switches: 4NO+4NC
  • Closing coil (CC): 100% OP (110-127 V AC / 110-125 V DC)
  • Remote trip alarm reset (RR): 110-127 V AC / 110-125 V DC
  • Shunt trip (ST): 100% OP (24-30 V DC)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video


Product

Manufacturer Material ID -
3WA1108-2AF40-8HA1
Net Weight -
55.27kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive integrated -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
4
Number of auxiliary contacts as normally open contact -
4
Number of poles -
4
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of control element -
Push button
Type of electrical connection of main circuit -
Rail connection
