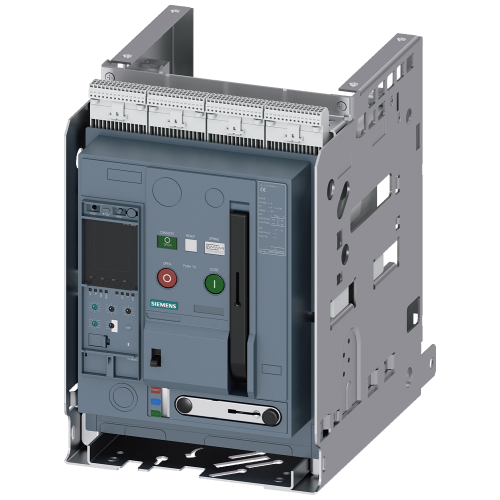

3WA11202AE340AA0

Withdrawable circuit breaker with guide frame, IEC 60947-2, frame size 1, 3-poles, In=2000A up to 690V AC 50/60Hz, breaking capaci

Manufacturer's No: 3WA1120-2AE34-0AA0     Manufacturer: Siemens
Withdrawable circuit breaker with guide frame, IEC 60947-2, frame size 1, 3-poles, In=2000A up to 690V AC 50/60Hz, breaking capacity N Icu=55/42kA ...

Availability On Request

£8,283.34
  • Withdrawable circuit breaker with guide frame
  • IEC 60947-2, frame size 1, 3-poles
  • Rated current: 2000A, Voltage: up to 690V AC 50/60Hz
  • Breaking capacity: 55/42kA at 500/690V
  • Trip unit ETU600 LSI upgrade ready
  • Features: colordisplay, bluetooth, USB interface
  • Protection: LT, ST, INST, N-protection (external N-sensor required)
  • Includes trip alarm switch (1xCO), rear connection flange
  • Air circuit breaker SENTRON 3WA for incoming-feeder, tie, and outgoing-feeder
  • Suitable for industrial, building, and infrastructure applications

Read more

  • Offers lasting flexibility, upgradeable functionalities, and powerful communication options
  • Provides maximum transparency in plant operation
  • Long service life, low maintenance, and long-term safety
  • Available in three sizes for AC applications and one size for DC applications
  • Modular accessories and digital extensions for adaptable functions
  • Replaces the 3WL series
  • Performance range: 630A to 6300A
  • Available in 3-pole and 4-pole versions
  • Efficient selection, planning, and ordering process
  • Designed for makers, offering reliability and simplicity


Product

Manufacturer Material ID -
3WA1120-2AE34-0AA0
Net Weight -
76.98kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
UNSPSC -
39121521

Technical Specification

Complete device with protection unit -
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Suitable for DIN rail (top hat rail) mounting -

Availability On Request

£8,283.34
