3WA12204AB615BL1

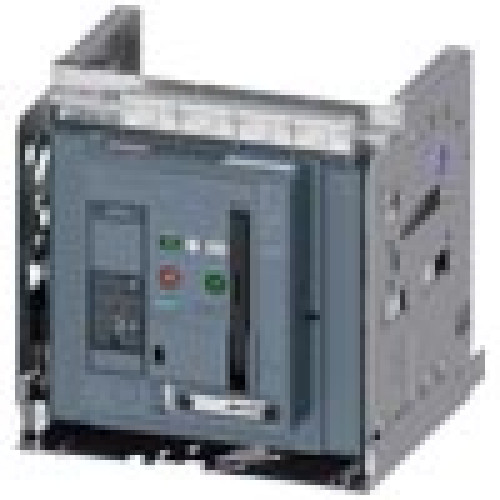

Withdrawable circuit breaker with guide frame, IEC 60947-2, frame size 2, 3-poles, In=2000A up to 690V AC 50/60Hz, breaking capaci

Manufacturer's No: 3WA1220-4AB61-5BL1     Manufacturer: Siemens
Withdrawable circuit breaker with guide frame, IEC 60947-2, frame size 2, 3-poles, In=2000A up to 690V AC 50/60Hz, breaking capacity M Icu=85/66kA at 500/690V, Trip unit ETU300 LSI optimized for stand

Availability On Request

£13,100.48
  • Withdrawable circuit breaker with guide frame
  • Complies with IEC 60947-2
  • Frame size: 2
  • Number of poles: 3
  • Rated current (In): 2000A
  • Voltage: Up to 690V AC, 50/60Hz
  • Breaking capacity (Icu): 85/66kA at 500/690V
  • Trip unit: ETU300 LSI optimized for standard applications
  • Protection types: LT, ST, INST
  • Requires external N-sensor for N-protection

Read more

  • Includes trip alarm switch (1xCO)
  • Rear connection: Vertical
  • Guide frame with shutter and position signaling switch (3xW)
  • No communication and metering function
  • Manual and motorized operating mechanism (M) 24-30 V DC
  • Storage status and ready-to-close signaling switches
  • Auxiliary switches: 4NO+4NC
  • Closing coil (CC): 100% OP 24-30 V DC, suitable for continuous duty
  • No remote trip alarm reset coil (RR)
  • Undervoltage release (UVR): Instantaneous (0.08 s) and short-delay (0.2 s), 24 V DC
  • Shunt trip (ST): 100% OP 24-30 V DC, suitable for continuous duty


Product

Manufacturer Material ID -
3WA1220-4AB61-5BL1
Net Weight -
93.83kg

Additional Product Information

Commodity Code -
39269097
Country of Origin -
CZ
UNSPSC -
30265802

Availability On Request

£13,100.48
Sign in or Register for customer prices.

Additional Information
