3WA12204CA408DD3

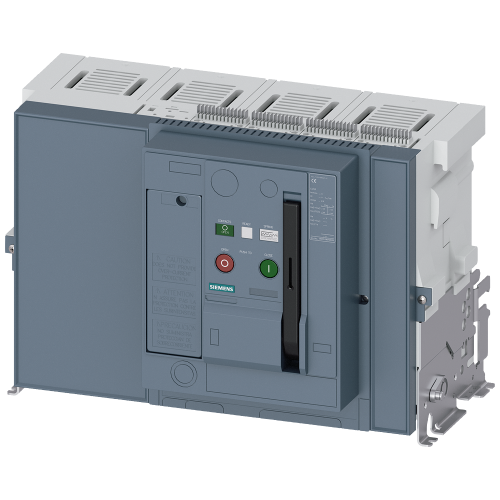

Non-automatic circuit breaker withdrawable version, without guide frame, IEC 60947-2, frame size 2, 4-poles, N-pole left, In=2000A

Manufacturer's No: 3WA1220-4CA40-8DD3     Manufacturer: Siemens
Non-automatic circuit breaker withdrawable version, without guide frame, IEC 60947-2, frame size 2, 4-poles, N-pole left, In=2000A up to 690V AC 50/60Hz, breaking capacity M Icc=85/66kA at 500/690V, w

Availability On Request

£13,172.64
  • Non-automatic circuit breaker, withdrawable version
  • Without guide frame
  • Complies with IEC 60947-2
  • Frame size: 2
  • 4-poles, N-pole positioned on the left
  • Rated current (In): 2000A
  • Voltage rating: Up to 690V AC, 50/60Hz
  • Breaking capacity: M Icc=85/66kA at 500/690V
  • Without electronic trip unit (ETU)
  • Capable of communication

Read more

  • Includes manual and motorized operating mechanism (M) for 208-240 V AC / 220-250 V DC
  • Equipped with storage status and ready-to-close signaling switches
  • Auxiliary switches: 4NO+4NC
  • Closing coil (CC) rated for 100% operation at 110-127 V AC / 110-125 V DC, suitable for continuous duty
  • Without remote trip alarm reset coil (RR)
  • Shunt trip (ST2) rated for 100% operation at 110-127 V AC / 110-125 V DC, suitable for continuous duty
  • Shunt trip (ST) rated for 100% operation at 110-127 V AC / 110-125 V DC, suitable for continuous duty


Product

Manufacturer Material ID -
3WA1220-4CA40-8DD3
Net Weight -
68.20kg

Additional Product Information

Commodity Code -
39269097
Country of Origin -
CZ
UNSPSC -
30265802

Availability On Request

£13,172.64
