3WA12205CE112BL1

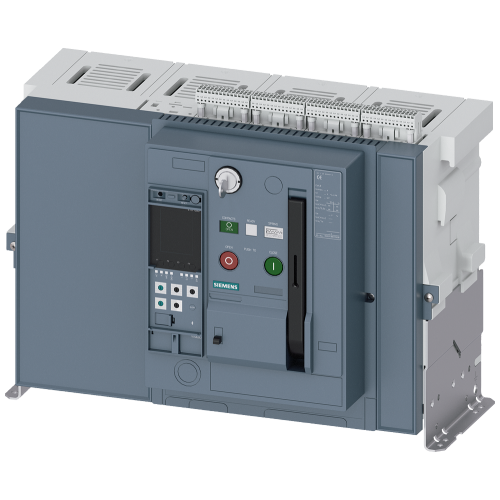

Fixed-mounted circuit breaker IEC 60947-2, frame size 2, 4-poles, N-pole left, In=2000A up to 690V AC 50/60Hz, breaking capacity H

Manufacturer's No: 3WA1220-5CE11-2BL1     Manufacturer: Siemens
Fixed-mounted circuit breaker IEC 60947-2, frame size 2, 4-poles, N-pole left, In=2000A up to 690V AC 50/60Hz, breaking capacity H Icu=100/85kA at ...

Availability On Request

£14,690.78
  • Fixed-mounted circuit breaker IEC 60947-2, frame size 2, 4-poles, N-pole left
  • Rated current: 2000A, Voltage: up to 690V AC 50/60Hz
  • Breaking capacity: 100kA at 500V, 85kA at 690V
  • Trip unit ETU600 LSI upgrade ready
  • Protection: LT, ST, INST, N-protection
  • Communication: Bluetooth and USB interface
  • Display: Color display
  • Features: Trip alarm switch (1xCO), internal N-sensor available
  • Operating mechanism: Manual and motorized (24-30 V DC)
  • Storage status and ready-to-close signaling switches

Read more

  • Auxiliary switches: 2NO+2NC
  • Closing coil (CC): 100% OP 24-30 V DC
  • Undervoltage release (UVR): Instantaneous (0.08 s) and short-delay (0.2 s), 24 V DC
  • Shunt trip (ST): 100% OP 24-30 V DC
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video


Product

Manufacturer Material ID -
3WA1220-5CE11-2BL1
Net Weight -
78.36kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive integrated -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of poles -
4
Power loss -
180 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
100 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of control element -
Push button
Type of electrical connection of main circuit -
Rail connection
With integrated under voltage release -
