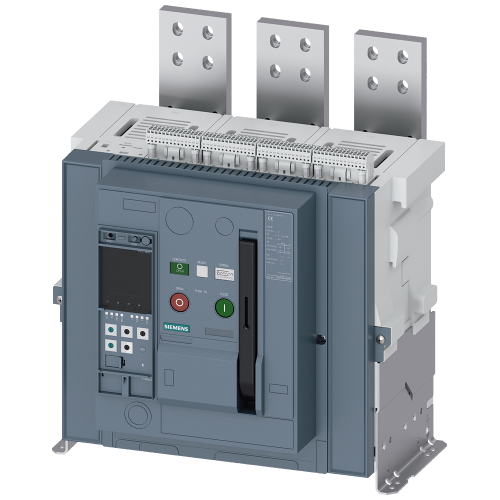

3WA12255AF030AA3

Fixed-mounted circuit breaker IEC 60947-2, frame size 2, 3-poles, In=2500A up to 690V AC 50/60Hz, breaking capacity H Icu=100/85kA

Manufacturer's No: 3WA1225-5AF03-0AA3     Manufacturer: Siemens
Fixed-mounted circuit breaker IEC 60947-2, frame size 2, 3-poles, In=2500A up to 690V AC 50/60Hz, breaking capacity H Icu=100/85kA at 500/690V, Trip unit ETU600 LSIG upgrade ready , colordisplay, blue

Availability On Request

£12,321.74
  • Fixed-mounted circuit breaker compliant with IEC 60947-2
  • Frame size: 2
  • Number of poles: 3
  • Rated current (In): 2500A
  • Voltage: Up to 690V AC, 50/60Hz
  • Breaking capacity (Icu): 100/85kA at 500/690V
  • Trip unit: ETU600 LSIG, upgrade ready
  • Color display
  • Bluetooth and USB interface
  • Protection features: LT, ST, INST, GFx

Read more

  • N-protection requires an external N-sensor
  • Includes trip alarm switch (1xCO)
  • Front connection with double hole
  • Manual operating mechanism with mechanical closing
  • Ready-to-close signal switch
  • Auxiliary switches: 2NO+2NC
  • Shunt trip (ST) 100% OP: 110-127 V AC / 110-125 V DC, suitable for continuous duty
  • Without Com & metering function
  • Without spring charging motor
  • Without closing coil (CC)
  • Without remote trip alarm reset coil (RR)
  • Without 2nd shunt trip


Product

Manufacturer Material ID -
3WA1225-5AF03-0AA3
Net Weight -
83.16kg

Additional Product Information

Commodity Code -
39269097
Country of Origin -
CZ
UNSPSC -
30265802

Availability On Request

£12,321.74
