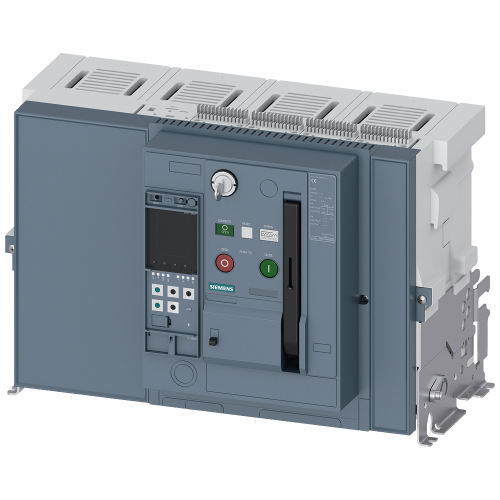

3WA12323AF404BA1

Withdrawable circuit breaker without guide frame, IEC 60947-2, frame size 2, 4-poles, N-pole left, In=3200A up to 690V AC 50/60Hz,

Manufacturer's No: 3WA1232-3AF40-4BA1     Manufacturer: Siemens
Withdrawable circuit breaker without guide frame, IEC 60947-2, frame size 2, 4-poles, N-pole left, In=3200A up to 690V AC 50/60Hz, breaking capacit...

Availability On Request

£18,206.98
  • Withdrawable circuit breaker without guide frame
  • IEC 60947-2, frame size 2, 4-poles, N-pole left
  • Rated current: 3200A, Voltage: up to 690V AC 50/60Hz
  • Breaking capacity: 66kA at 500V, 50kA at 690V
  • Trip unit: ETU600 LSIG upgrade ready
  • Features a color display, Bluetooth, and USB interface
  • Protection functions: LT, ST, INST, GFx, N-protection
  • Trip alarm switch included
  • Manual and motorized operating mechanism (M) 208-240 V AC / 220-250 V DC
  • Storage status and ready-to-close signaling switches

Read more

  • Auxiliary switches: 2NO+2NC
  • Closing coil (CC) 100% OP 24-30 V DC
  • Shunt trip (ST) 100% OP 24-30 V DC
  • Applicable for continuous duty
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video


Product

Manufacturer Material ID -
3WA1232-3AF40-4BA1
Net Weight -
82.10kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive integrated -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of poles -
4
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
66 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of control element -
Push button
Type of electrical connection of main circuit -
Rail connection
