3WA12404AF015BL1

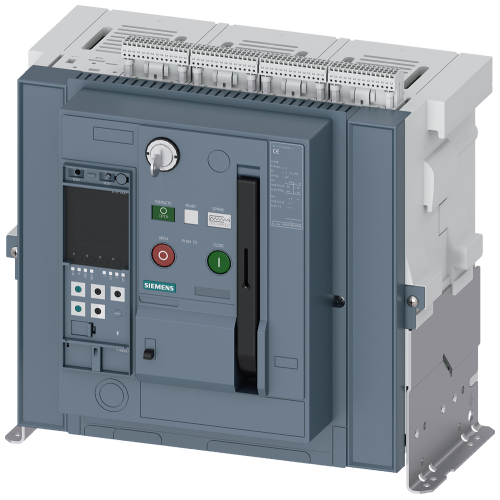

Fixed-mounted circuit breaker IEC 60947-2, frame size 2, 3-poles, In=4000A up to 690V AC 50/60Hz, breaking capacity M Icu=85/66kA

Manufacturer's No: 3WA1240-4AF01-5BL1     Manufacturer: Siemens
Fixed-mounted circuit breaker IEC 60947-2, frame size 2, 3-poles, In=4000A up to 690V AC 50/60Hz, breaking capacity M Icu=85/66kA at 500/690V, Trip...

Availability On Request

£20,224.99
  • Fixed-mounted circuit breaker IEC 60947-2, frame size 2, 3-poles, In=4000A up to 690V AC 50/60Hz
  • Breaking capacity M Icu=85/66kA at 500/690V
  • Trip unit ETU600 LSIG upgrade ready
  • Protection functions: LT, ST, INST, GFx
  • N-protection requires an external N-sensor
  • Colordisplay with Bluetooth and USB interface
  • Trip alarm switch (1xCO) included
  • Rear connection vertical
  • Manual and motorized operating mechanism (M) 24-30 V DC
  • Storage status and ready-to-close signaling switches

Read more

  • Auxiliary switches 4NO+4NC
  • Closing coil (CC) 100% OP 24-30 V DC
  • Undervoltage release (UVR) instantaneous (0.08 s) and short-delay (0.2 s), 24 V DC
  • Shunt trip (ST) 100% OP 24-30 V DC
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video


Product

Manufacturer Material ID -
3WA1240-4AF01-5BL1
Net Weight -
66.51kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive integrated -
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
4
Number of auxiliary contacts as normally open contact -
4
Number of poles -
3
Power loss -
760 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
85 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of control element -
Push button
Type of electrical connection of main circuit -
Rail connection
With integrated under voltage release -

Availability On Request

£20,224.99
