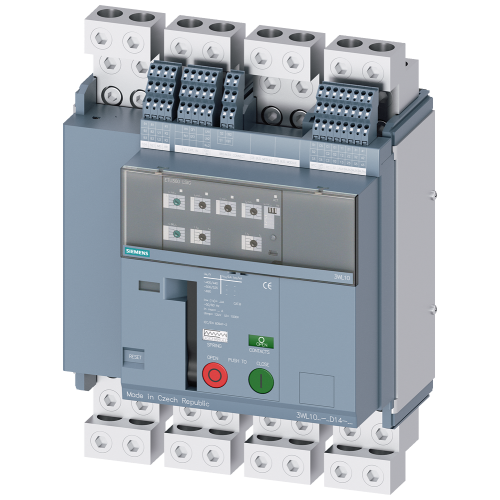

3WL10102AD140AA0-ZB08

fixed-mounted circuit breakers 4-pole, frame size 0, IEC N conductor on the left In=1000A to 690V, 50/60Hz AC Icu=55kA at 415V Icu

Manufacturer's No: 3WL1010-2AD14-0AA0-Z B08     Manufacturer: Siemens
fixed-mounted circuit breakers 4-pole, frame size 0, IEC N conductor on the left In=1000A to 690V, 50/60Hz AC Icu=55kA at 415V Icu=50kA at 500V Icu...

Availability On Request

£5,708.36
  • Fixed-mounted circuit breakers
  • 4-pole, frame size 0, IEC N conductor on the left
  • Rated current: 1000A
  • Voltage: 690V, 50/60Hz AC
  • Short-circuit breaking capacity: 55kA at 415V, 50kA at 500V, 42kA at 690V
  • ETU360 electronic trip units
  • LSIG rotary coding switch with tripped signaling switch
  • RTC and 4Aux auxiliary switches protection
  • Adjustable settings: Ir 0.4-1 In, Isd 1-10 In, I:ii 1-15 In
  • Variable ground-fault/n prot. circ. conductor conn. pc for dual cables

Read more

  • Front maine


Product

Manufacturer Material ID -
3WL1010-2AD14-0AA0-Z B08
Net Weight -
34.11kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Integrated earth fault protection -
Motor drive optional -
Suitable for DIN rail (top hat rail) mounting -

Availability On Request

£5,708.36
