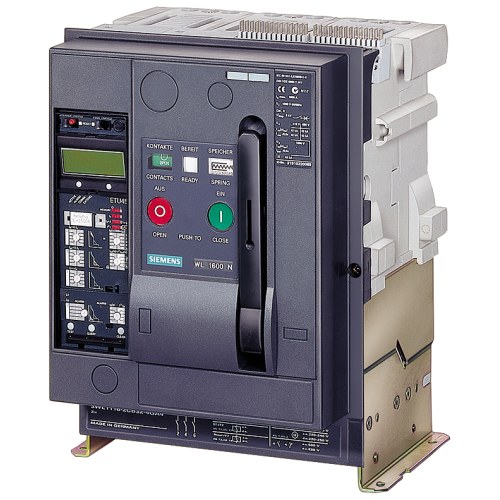

3WL11083FB361AA2

withdrawable circuit breaker with guide frame 3-pole, size I, IEC In=800A to 690V, AC50/60Hz Icu=66k

Manufacturer's No: 3WL1108-3FB36-1AA2     Manufacturer: Siemens
withdrawable circuit breaker with guide frame 3-pole, size I, IEC In=800A to 690V, AC50/60Hz Icu=66k

Availability Back Order

£6,311.18
  • Withdrawable circuit breaker with guide frame
  • 3-pole, size I
  • IEC rated current: 800A
  • Voltage rating: 690V AC, 50/60Hz
  • Ultimate breaking capacity: 66kA at 500V
  • Rear connection, horizontal
  • Overcurrent release: ETU45 LSIN protection, adjustable 0.4-1
  • Includes display and cubicle bus
  • Optional features: Communication/measuring functions/ground fault/ZSS
  • Manual operating mechanism with storage

Read more

  • Mechanical request feature included
  • Does not include 1st or 2nd auxiliary release
  • Contact configuration: 2NO+2NC
Product video


Product

Manufacturer Material ID -
3WL1108-3FB36-1AA2
Net Weight -
70.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Overload release current setting -
320 Ampere
Rated voltage -
690 Volt
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
66 kiloampere
Adjustment range undelayed short-circuit release -
1200 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of poles -
3
Power loss -
195 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
66 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of control element -
Push button
Type of electrical connection of main circuit -
Rail connection
