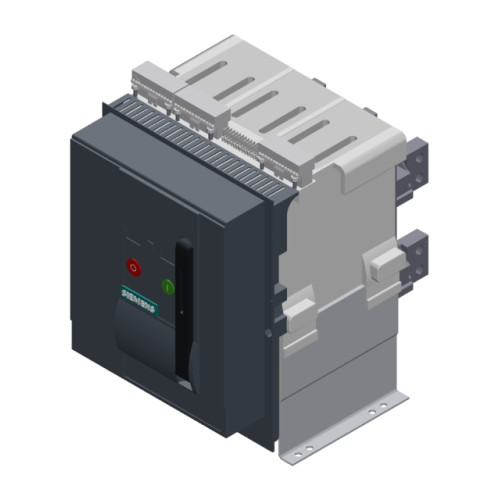

3WL11164AA314AN4

fixed-mount non-aut. circuit-b. 3-pole, size I, IEC In=1600A to 690V, AC50/60Hz Icu=85kA at 500V rea

Manufacturer's No: 3WL1116-4AA31-4AN4     Manufacturer: Siemens
fixed-mount non-aut. circuit-b. 3-pole, size I, IEC In=1600A to 690V, AC50/60Hz Icu=85kA at 500V rea

Availability Available to order

£10,232.12
  • Fixed-mount non-automatic circuit breaker
  • 3-pole, size I, IEC
  • Rated current: 1600A at 690V AC 50/60Hz
  • Ultimate breaking capacity: 85kA at 500V
  • Rear connection, vertical mounting
  • Motorized/manual operating mechanism with spring charging motor
  • Operating voltage: AC 208-240V or 220-250V DC
  • Activation voltage: AC 230V, DC 220V
  • Does not include 1st auxiliary release
  • Includes 2nd auxiliary release "R", F3

Read more

  • Undervoltage release: instantaneous, AC 208-240V, DC 220-250V
  • Contact configuration: 4NO+4NC


Product

Manufacturer Material ID -
3WL1116-4AA31-4AN4
Net Weight -
43.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Rated voltage -
690 Volt
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
85 kiloampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive integrated -
Number of auxiliary contacts as normally closed contact -
4
Number of auxiliary contacts as normally open contact -
4
Number of poles -
3
Power loss -
150 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
85 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Push button
Type of electrical connection of main circuit -
Rail connection
With integrated under voltage release -
Commodity Code -
85362090

Availability Available to order

£10,232.12
