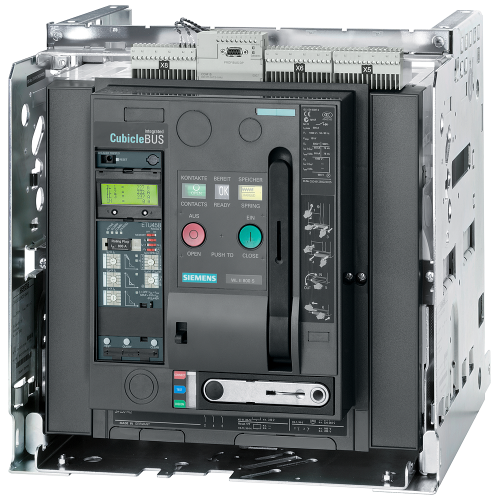

3WL52304EG321FA2

fixed-mounted circuit breaker approved to UL489 3-pole, BG II, In=3000A AC 50/60 Hz, IEC: to 690V, 1

Manufacturer's No: 3WL5230-4EG32-1FA2     Manufacturer: Siemens
fixed-mounted circuit breaker approved to UL489 3-pole, BG II, In=3000A AC 50/60 Hz, IEC: to 690V, 1

Availability Back Order

£21,413.81
  • Fixed-mounted circuit breaker approved to UL489
  • 3-pole, BG II
  • Rated current: 3000A
  • AC 50/60 Hz
  • IEC voltage rating: up to 690V
  • UL voltage rating: up to 600V
  • Breaking capacity: 100kA at 440V, 100kA at 480V
  • Rear horizontal connection
  • Overcurrent release: ETU 45 LSING
  • Adjustable protection range: 0.4-1 in

Read more

  • Ground fault protection
  • Optional communication/measuring functions/ZSS
  • Manual operating mechanism with storage and mechanical request
  • 1st auxiliary release included
  • Shunt release "F", F1 50/60 Hz 110 V AC/110 V DC
  • No 2nd auxiliary release
  • Configuration: 2NO+2NC


Product

Manufacturer Material ID -
3WL5230-4EG32-1FA2
Net Weight -
64.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Overload release current setting -
1200 Ampere
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
100 kiloampere
Adjustment range undelayed short-circuit release -
4500 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Integrated earth fault protection -
Motor drive optional -
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of poles -
3
Power loss -
410 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
100 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of control element -
Push button
Type of electrical connection of main circuit -
Rail connection

Availability Back Order

£21,413.81
