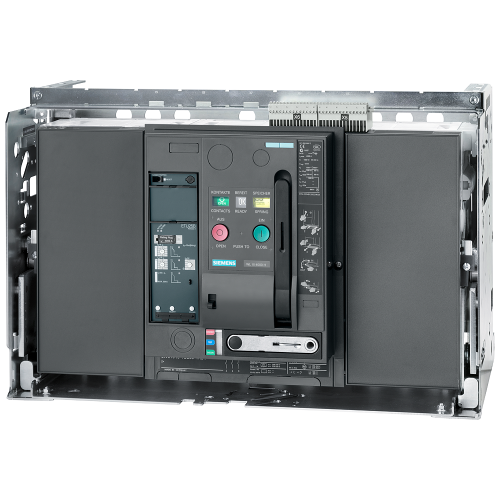

3WL53404EG321FA2-ZT40

fixed-mounted circuit breaker approved to UL489 3-pole, BG III, In=4000A AC 50/60 Hz, IEC: to 690V, 100kA at 440V ul: to 600y/ 347

Manufacturer's No: 3WL5340-4EG32-1FA2-Z T40     Manufacturer: Siemens
fixed-mounted circuit breaker approved to UL489 3-pole, BG III, In=4000A AC 50/60 Hz, IEC: to 690V, 100kA at 440V ul: to 600y/ 347, 100kA at 480V r...

Availability On Request

£29,978.92
  • Fixed-mounted circuit breaker approved to UL489
  • 3-pole, BG III
  • Rated current: 4000A
  • Frequency: 50/60 Hz
  • Voltage rating: up to 690V
  • Breaking capacity: 100kA at 440V and 480V
  • Rear connection horizontal
  • Available in 3 sizes ranging from 630A to 6300A
  • Suitable for use up to 1150V
  • Can be fixed-mounted or as draw-out version

Read more

  • Communication capability via PROFIBUS DP or Modbus RTU
  • RoHS-compliant
  • Easy servicing with slide-in units
  • Resistance to climatic conditions according to IEC 68 part 30-2


Product

Manufacturer Material ID -
3WL5340-4EG32-1FA2-Z T40
Net Weight -
82.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Complete device with protection unit -
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Integrated earth fault protection -
Motor drive optional -
Suitable for DIN rail (top hat rail) mounting -

Availability On Request

£29,978.92
