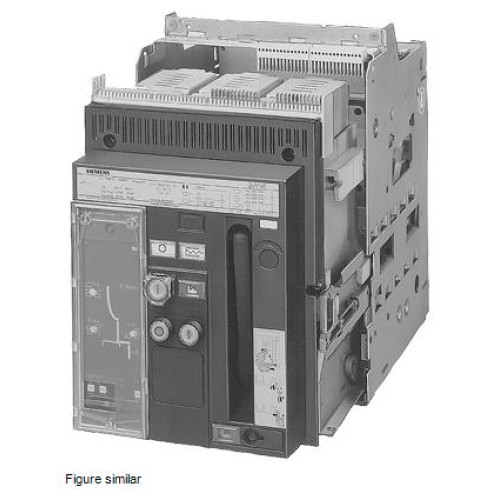

3WN63710GB563HA1

Draw-out circuit breaker 3-pole, Size 1 In=1250 A up to 690 V, 50/60 Hz AC Icu=65 kA at 500 V with r

Manufacturer's No: 3WN6371-0GB56-3HA1     Manufacturer: Siemens
Draw-out circuit breaker 3-pole, Size 1 In=1250 A up to 690 V, 50/60 Hz AC Icu=65 kA at 500 V with r

Availability Back Order

POA
  • Draw-out circuit breaker 3-pole, Size 1
  • Rated current: 1250 A
  • Voltage: Up to 690 V, 50/60 Hz AC
  • Short-circuit breaking capacity: 65 kA at 500 V
  • Features a ready-to-close signaling switch with mechanical lockout device
  • Equipped with tripped signaling switch and tripped indicators
  • Overcurrent release AZN Version B with setting range of 500 to 1250 A
  • Motorized/manual operating mechanism with memory and both electrical and mechanical activation
  • Motor and electrical signaling for 110-127 V AC, 110-125 V DC
  • Includes 1st auxiliary release and undervoltage release "R" F3 for 110-127 V AC, 110-125 V DC

Read more

  • Instantaneous switch position-dependent auxiliary current switches: 2 NC + 2 NO


Product

Manufacturer Material ID -
3WN6371-0GB56-3HA1
Net Weight -
36.75kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
39121601

Availability Back Order

POA
