400-415/415-124

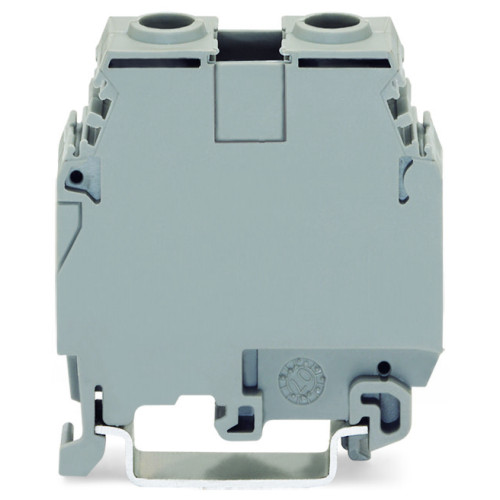

Screw-type through terminal block, 35 mm, for DIN-rail 35 x 15 and 35 x 7.5, 35, 00 mm, gray

Manufacturer's No: 400-415/415-124     Manufacturer: WAGO
Screw-type through terminal block, 35 mm, for DIN-rail 35 x 15 and 35 x 7.5, 35, 00 mm, gray

Availability Back Order

POA
  • Screw-type through terminal block
  • Fits DIN-rail sizes: 35 x 15 and 35 x 7.5
  • Dimensions: 35.00 mm
  • Color: Gray


Product

Manufacturer Material ID -
400-415/415-124
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
UNSPSC -
39121410

Technical Specification

Connectable conductor cross section solid-core -
- Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
- Square millimetre
Length -
49 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
16 Millimetre
Height at lowest possible mounting height -
46.5 Millimetre
Connection position -
Sideways
Mounting method -
DIN rail (top hat rail) 35 mm
Colour -
Grey
Rated voltage -
800 Volt
Operating temperature -
105 Degrees celsius
Inflammability class of insulation material acc. with UL94 -
V0
Closing plate required -
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection
Number of levels -
1
Number of clamp positions per level -
2
Connectable conductor cross section multi-wired -
16 Square millimetre
Material insulation body -
Thermoplastic
Rated current In -
135 Ampere
