400-490/490-001

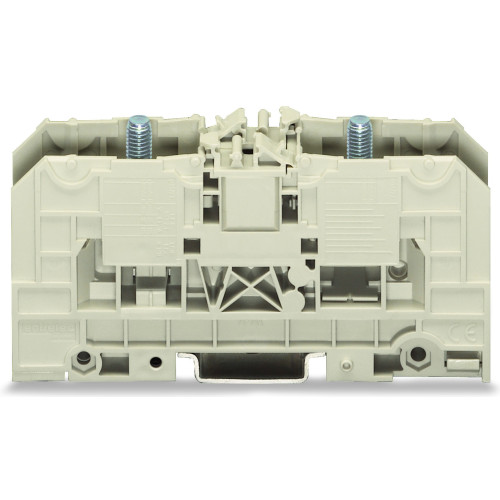

Stud terminal block; 35 mm; with 2 stud bolts M6

Manufacturer's No: 400-490/490-001     Manufacturer: WAGO
Stud terminal block; 35 mm; with 2 stud bolts M6

Availability On Request

£14.91
  • Stud terminal block
  • Size: 35 mm
  • Includes 2 stud bolts M6
  • Color: Light gray


Product

Manufacturer Material ID -
400-490/490-001
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
UNSPSC -
32151705

Technical Specification

Connectable conductor cross section solid-core -
- Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
- Square millimetre
Length -
113 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
27 Millimetre
Height at lowest possible mounting height -
51.5 Millimetre
PEN function possible -
Connection position -
Sideways
Mounting method -
DIN rail (top hat rail) 35 mm
Colour -
Grey
Rated voltage -
1000 Volt
Operating temperature -
105 Degrees celsius
Inflammability class of insulation material acc. with UL94 -
V0
Type of electrical connection 1 -
Bolt connection
Type of electrical connection 2 -
Bolt connection
Number of levels -
1
Number of clamp positions per level -
2
Connectable conductor cross section multi-wired -
2.5 Square millimetre
Material insulation body -
Thermoplastic
Rated current In -
125 Ampere

Availability On Request

£14.91
