2CPX040021R9999

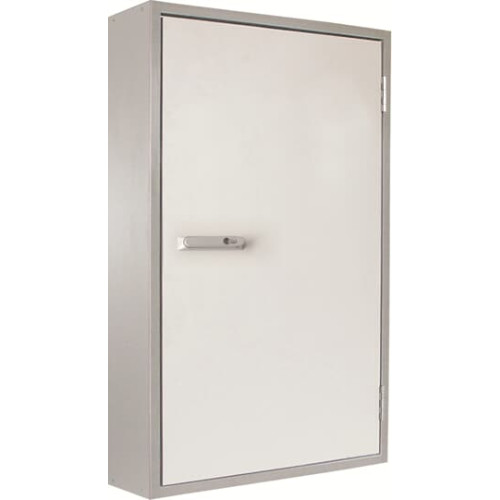

2/0UF2120 Fire resistance - wall cabinet, Rows: 4, 682 mm x 582 mm x 205 mm, Isolated (Class II), IP41

Manufacturer's No: 40021     Manufacturer: ABB
2/0UF2120 Fire resistance - wall cabinet, Rows: 4, 682 mm x 582 mm x 205 mm, Isolated (Class II), IP41

Availability On Request

£2,612.61
  • Fire resistance wall cabinet, series UF
  • Dimensions: 682 mm x 582 mm x 205 mm
  • Isolated (Class II) with IP41 protection
  • Fire resistance tested for 30 minutes
  • Impact strength IK08
  • Rated operational voltage: 400V AC 50/60 Hz
  • Coated in RAL 7035
  • Single-leaf door with swivel handle and half cylinder
  • Cable entry on top and bottom via fire stop cable entry
  • Grid unit: 4 GU

Read more

  • Overall height: 0
  • Panel width: 2
  • Space units: 96
  • Pre-assembled for installation with Modules, Combi-Sets, CombiLine-Module on EDF-mounting frame


Product

Manufacturer Material ID -
40021
Net Weight -
58.00kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Circuit integrity -
E 30
Colour -
Grey
Cover model -
With notch
Degree of protection (IP rating) -
IP41
Depth -
205 Millimetre
Height -
682 Millimetre
Impact resistance (IK rating) -
IK08
Internal depth -
138 Millimetre
Mounting method -
Flush mounted
Number of conduit inlets -
2
Number of modules -
96
Number of openings for flange plates -
2
Number of rows -
4
Plate thickness cabinet -
72 Millimetre
Plate thickness door/cover -
72 Millimetre
Protection class -
II
RAL number -
7035
Recess depth -
138 Millimetre
Surface protection -
Other
Type of covering -
None
Type of door -
Single
Width -
582 Millimetre
Width in number of modular spacings -
24
With lock -
ABB

Availability On Request

£2,612.61
