2CPX041094R9999

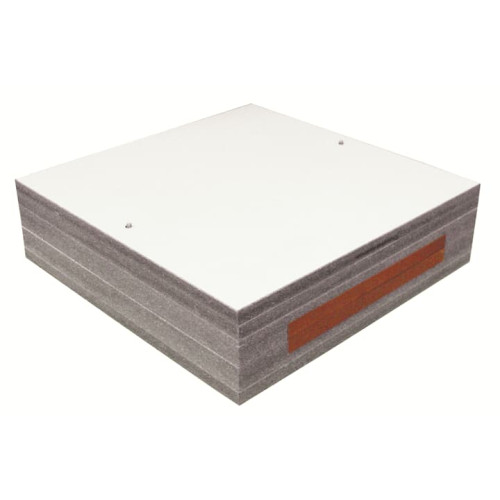

KF55140 Fire resistance screw terminal enclosure, Rows: 3, 550 mm x 550 mm x 128 mm, Isolated (Class II), IP41

Manufacturer's No: 41094     Manufacturer: ABB
KF55140 Fire resistance screw terminal enclosure, Rows: 3, 550 mm x 550 mm x 128 mm, Isolated (Class II), IP41

Availability Back Order

£1,735.37
  • KF55140 Fire resistance screw terminal enclosure
  • Rows: 3
  • Dimensions: 550 mm x 550 mm x 128 mm
  • Isolated (Class II)
  • IP41 protection rating
  • Empty housing for internal use
  • Double insulated (Class II)
  • Fire resistance tested according to EN 13501-1: 30 min
  • Impact strength: IK08
  • Rated operational voltage: 400V AC 50/60 Hz

Read more

  • Coated in RAL 7035
  • Material: A2 non-flammable
  • Grid unit: 3 GU
  • No door
  • Space units: 72


Product

Manufacturer Material ID -
41094
Net Weight -
34.00kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Circuit integrity -
E 30
Colour -
Grey
Cover model -
With notch
Degree of protection (IP rating) -
IP41
Depth -
128 Millimetre
Height -
550 Millimetre
Impact resistance (IK rating) -
IK08
Internal depth -
84 Millimetre
Mounting method -
Other
Number of conduit inlets -
4
Number of modules -
72
Number of openings for flange plates -
2
Number of rows -
3
Plate thickness cabinet -
72 Millimetre
Plate thickness door/cover -
72 Millimetre
Protection class -
II
RAL number -
7035
Recess depth -
84 Millimetre
Surface protection -
Other
Type of covering -
None
Type of door -
None
Width -
550 Millimetre
Width in number of modular spacings -
24
With lock -
ABB
