2CPX041123R9999

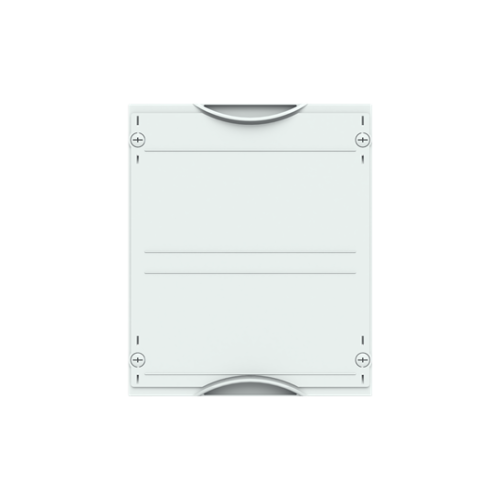

MS128 Busbar system vertical 300 mm x 250 mm x 200 mm , 000

Manufacturer's No: 41123     Manufacturer: ABB
MS128 Busbar system vertical 300 mm x 250 mm x 200 mm , 000

Availability On Request

£178.21
  • Busbar system vertical: 300 mm x 250 mm x 200 mm
  • Interior fitting module CombiLine for vertical Busbar system
  • Grid unit: 2 GU = 300 mm, panel width: 250 mm
  • 24 Space units, unequipped for installation
  • 4-pole busbar system with 4 Cu busbars
  • Busbar alignment: vertical, busbar center distance: 40 mm
  • Rated current maximum: 440 A
  • Busbar holders ZX518, plastic covers with 90-degree press and turn closure
  • RAL 7035 color, cover design: Closed
  • Usable with cabinet depth of 200 mm


Product

Manufacturer Material ID -
41123
Net Weight -
2.23kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Busbar distance -
40 Millimetre
Busbar height -
30 Millimetre
Busbar position -
Centre central
Busbar thickness -
5 Millimetre
Depth -
200 Millimetre
Height -
300 Millimetre
Max. rated current -
440 Ampere
Number of poles -
4
Short-circuit breaking capacity (Icw) -
20 kiloampere
Width -
250 Millimetre
With cover -
ABB

Availability On Request

£178.21
